Cyber Espionage is Alive and Well: APT32 and the Threat to Global Corporations
Cyber espionage actors, now designated by FireEye as APT32 (OceanLotus Group), are carrying out intrusions into private sector companies across multiple industries and have also targeted foreign governments, dissidents, and journalists. FireEye assesses that APT32 leverages a unique suite of fully-featured malware, in conjunction with commercially-available tools, to conduct targeted operations that are aligned with Vietnamese state interests.
APT32 and FireEye’s Community Response
In the course of investigations into intrusions at several corporations with business interests in Vietnam, FireEye’s Mandiant incident response consultants uncovered activity and attacker-controlled infrastructure indicative of a significant intrusion campaign. In March 2017, in response to active targeting of FireEye clients, the team launched a Community Protection Event (CPE) – a coordinated effort between Mandiant incident responders, FireEye as a Service (FaaS), FireEye iSight Intelligence, and FireEye product engineering – to protect all clients from APT32 activity.
In the following weeks, FireEye released threat intelligence products and updated malware profiles to customers while developing new detection techniques for APT32’s tools and phishing lures. This focused intelligence and detection effort led to new external victim identifications as well as providing sufficient technical evidence to link twelve prior intrusions, consolidating four previously unrelated clusters of threat actor activity into FireEye’s newest named advanced persistent threat group: APT32.
APT32 Targeting of Private Sector Company Operations in Southeast Asia
Since at least 2014, FireEye has observed APT32 targeting foreign corporations with a vested interest in Vietnam’s manufacturing, consumer products, and hospitality sectors. Furthermore, there are indications that APT32 actors are targeting peripheral network security and technology infrastructure corporations.
Here is an overview of intrusions investigated by FireEye that are attributed to APT32:
- In 2014, a European corporation was compromised prior to constructing a manufacturing facility in Vietnam.
- In 2016, Vietnamese and foreign-owned corporations working in network security, technology infrastructure, banking, and media industries were targeted.
- In mid-2016, malware that FireEye believes to be unique to APT32 was detected on the networks of a global hospitality industry developer with plans to expand operations into Vietnam.
- From 2016 through 2017, two subsidiaries of U.S. and Philippine consumer products corporations, located inside Vietnam, were the target of APT32 intrusion operations.
Table 1 shows a breakdown of APT32 activity, including the malware families used in each.
Table 1: APT32 Private Sector Targeting Identified by FireEye
APT32 Interest in Political Influence and Foreign Governments
In addition to focused targeting of the private sector with ties to Vietnam, APT32 has also targeted foreign governments, as well as Vietnamese dissidents and journalists since at least 2013. Here is an overview of this activity:
- A public blog published by the Electronic Frontier Foundation indicated that journalists, activists, dissidents, and bloggers were targeted in 2013 by malware and tactics consistent with APT32 operations.
- In 2014, APT32 leveraged a spear-phishing attachment titled “Plans to crackdown on protesters at the Embassy of Vietnam.exe," which targeted dissident activity among the Vietnamese diaspora in Southeast Asia. Also in 2014, APT32 carried out an intrusion against a Western country’s national legislature.
- In 2015, SkyEye Labs, the security research division of the Chinese firm Qihoo 360, released a report detailing threat actors that were targeting Chinese public and private entities including government agencies, research institutes, maritime agencies, sea construction, and shipping enterprises. The information included in the report indicated that the perpetrators used the same malware, overlapping infrastructure, and similar targets as APT32.
- In 2015 and 2016, two Vietnamese media outlets were targeted with malware that FireEye assesses to be unique to APT32.
- In 2017, social engineering content in lures used by the actor provided evidence that they were likely used to target members of the Vietnam diaspora in Australia as well as government employees in the Philippines.
In their current campaign, APT32 has leveraged ActiveMime files that employ social engineering methods to entice the victim into enabling macros. Upon execution, the initialized file downloads multiple malicious payloads from remote servers. APT32 actors continue to deliver the malicious attachments via spear-phishing emails.
APT32 actors designed multilingual lure documents which were tailored to specific victims. Although the files had “.doc” file extensions, the recovered phishing lures were ActiveMime “.mht” web page archives that contained text and images. These files were likely created by exporting Word documents into single file web pages.
Table 2 contains a sample of recovered APT32 multilingual lure files.
ActiveMime Lure Files
(2017 Statistical Report on Staff Salary and Allowances)
Phan Vu Tutn CV.doc
|Ke hoach cuu tro nam 2017.doc|
(2017 Bailout Plan)
Instructions to GSIS.doc
|Hoi thao truyen thong doc lap.doc|
|Giấy yêu cầu bồi thường mới 2016 - hằng.doc|
(New 2016 Claim Form)
|Hoa don chi tiet tien no.doc|
|Thu moi tham du Hoi luan.doc|
(Collection of Participants)
|Danh sach nhan vien vi pham ky luat.doc|
(List of Employee Violations)
(Internal Content Advertising)
HĐ DVPM-VTC 31.03.17.doc
Table 2: Sampling of APT32 Lure Files

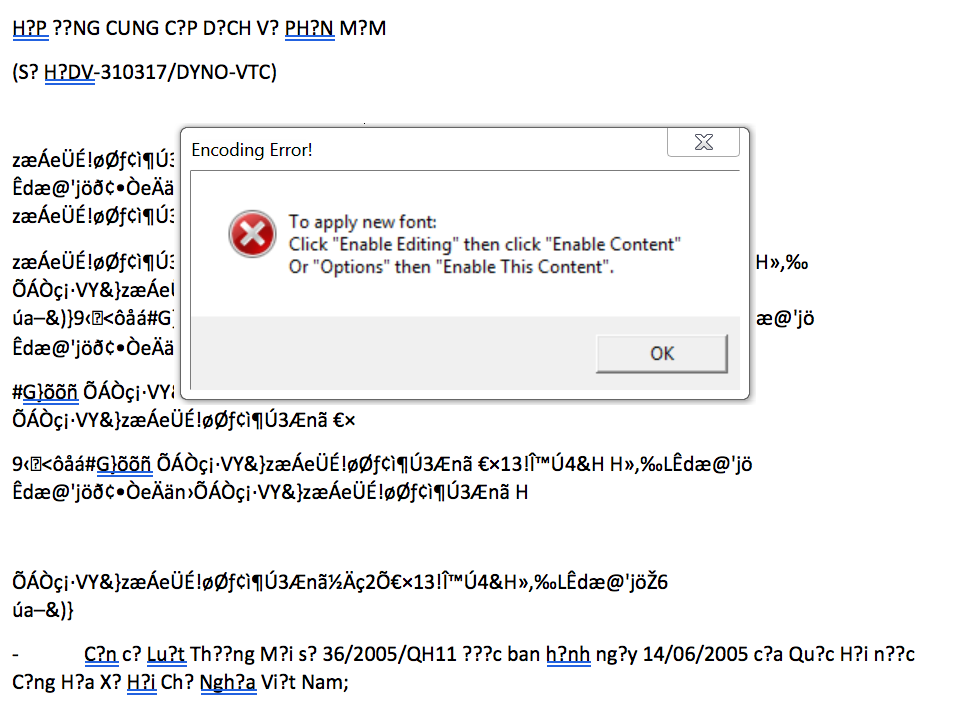

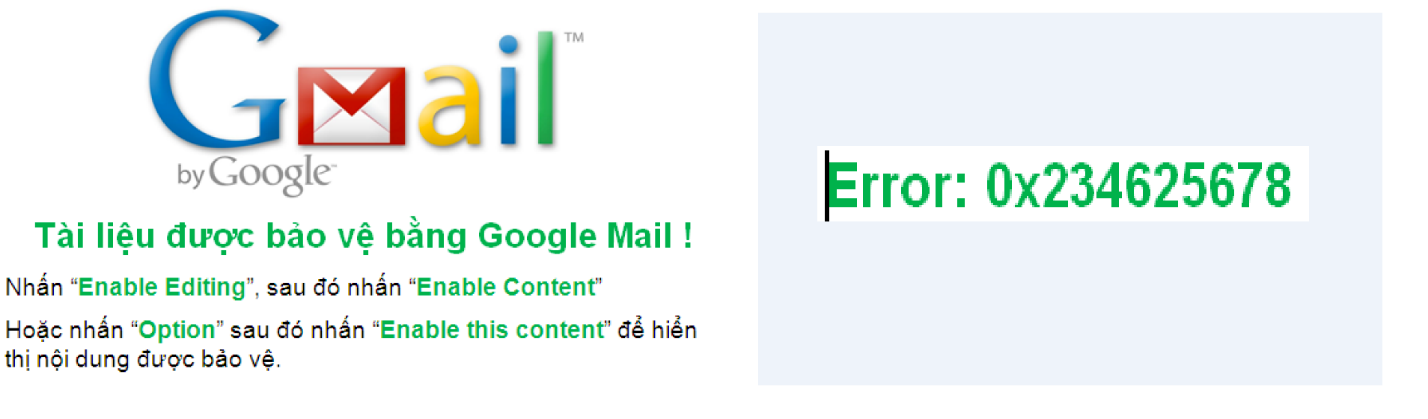

The Base64 encoded ActiveMime data also contained an OLE file with malicious macros. When opened, many lure files displayed fake error messages in an attempt to trick users into launching the malicious macros. Figure 1 shows a fake Gmail-theme paired with a hexadecimal error code that encourages the recipient to enable content to resolve the error. Figure 2 displays another APT32 lure that used a convincing image of a fake Windows error message instructing the recipient to enable content to properly display document font characters.
APT32 operators implemented several novel techniques to track the efficacy of their phishing, monitor the distribution of their malicious documents, and establish persistence mechanisms to dynamically update backdoors injected into memory.
In order to track who opened the phishing emails, viewed the links, and downloaded the attachments in real-time, APT32 used cloud-based email analytics software designed for sales organizations. In some instances, APT32 abandoned direct email attachments altogether and relied exclusively on this tracking technique with links to their ActiveMime lures hosted externally on legitimate cloud storage services.
To enhance visibility into the further distribution of their phishing lures, APT32 utilized the native web page functionality of their ActiveMime documents to link to external images hosted on APT32 monitored infrastructure.

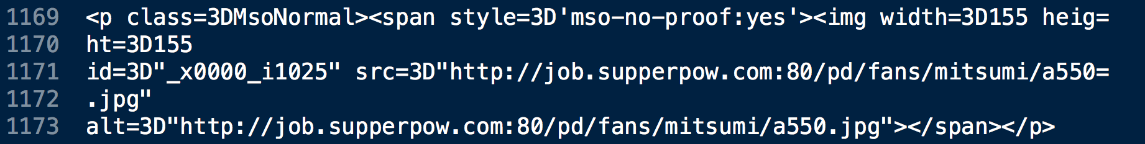

Figure 3 contains an example phishing lure with HTML image tags used for additional tracking by APT32.
When a document with this feature is opened, Microsoft Word will attempt to download the external image, even if macros were disabled. In all phishing lures analyzed, the external images did not exist. Mandiant consultants suspect that APT32 was monitoring web logs to track the public IP address used to request remote images. When combined with email tracking software, APT32 was able to closely track phishing delivery, success rate, and conduct further analysis about victim organizations while monitoring the interest of security firms.

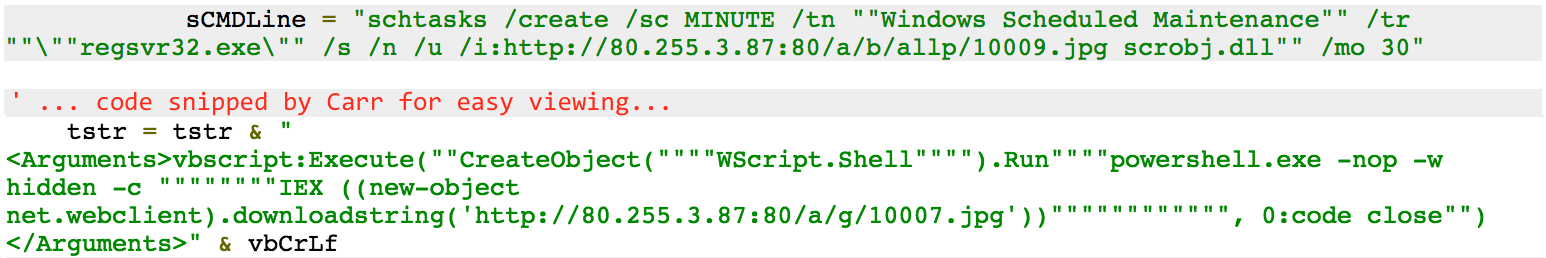

To illustrate the complexity of these lures, Figure 4 shows the creation of persistence mechanisms for recovered APT32 lure “2017年员工工资性津贴额统计报告.doc”.
In this example, a scheduled task named “Windows Scheduled Maintenance” was created to run Casey Smith’s “Squiblydoo” App Whitelisting bypass every 30 minutes. While all payloads can be dynamically updated, at the time of delivery, this task launched a COM scriptlet (“.sct” file extension) that downloaded and executed Meterpreter hosted on images.chinabytes[.]info. Meterpreter then loaded Cobalt Strike BEACON, configured to communicate with 80.255.3[.]87 using the Safebrowsing malleable C2 profile to further blend in with network traffic. A second scheduled task named “Scheduled Defrags” was created by loading the raw task XML with a backdated task creation timestamp of June 2, 2016. This second task ran “mshta.exe” every 50 minutes which launched an APT32-specific backdoor delivered as shellcode in a PowerShell script, configured to communicate with the domains blog.panggin[.]org, share.codehao[.]net, and yii.yiihao126[.]net.
Figure 5 illustrates the chain of events for a single successful APT32 phishing lure that dynamically injects two multi-stage malware frameworks into memory.
The impressive APT32 operations did not stop after they established a foothold in victim environments. Several Mandiant investigations revealed that, after gaining access, APT32 regularly cleared select event log entries and heavily obfuscated their PowerShell-based tools and shellcode loaders with Daniel Bohannon’s Invoke-Obfuscation framework.
APT32 regularly used stealthy techniques to blend in with legitimate user activity:
- During one investigation, APT32 was observed using a privilege escalation exploit (CVE-2016-7255) masquerading as a Windows hotfix.
- In another investigation, APT32 compromised the McAfee ePO infrastructure to distribute their malware as a software deployment task in which all systems pulled the payload from the ePO server using the proprietary SPIPE protocol.
- APT32 also used hidden or non-printing characters to help visually camouflage their malware on a system. For example, APT32 installed one backdoor as a persistent service with a legitimate service name that had a Unicode no-break space character appended to it. Another backdoor used an otherwise legitimate DLL filename padded with a non-printing OS command control code.
APT32 Malware and Infrastructure
APT32 appears to have a well-resourced development capability and uses a custom suite of backdoors spanning multiple protocols. APT32 operations are characterized through deployment of signature malware payloads including WINDSHIELD, KOMPROGO, SOUNDBITE, and PHOREAL. APT32 often deploys these backdoors along with the commercially-available Cobalt Strike BEACON backdoor. APT32 may also possess backdoor development capabilities for macOS.
The capabilities for this unique suite of malware is shown in Table 3.
BEACON (Cobalt Strike)
Table 3: APT32 Malware and Capabilities
APT32 operators appear to be well-resourced and supported as they use a large set of domains and IP addresses as command and control infrastructure. The FireEye iSIGHT Intelligence MySIGHT Portal contains additional information on these backdoor families based on Mandiant investigations of APT32 intrusions.

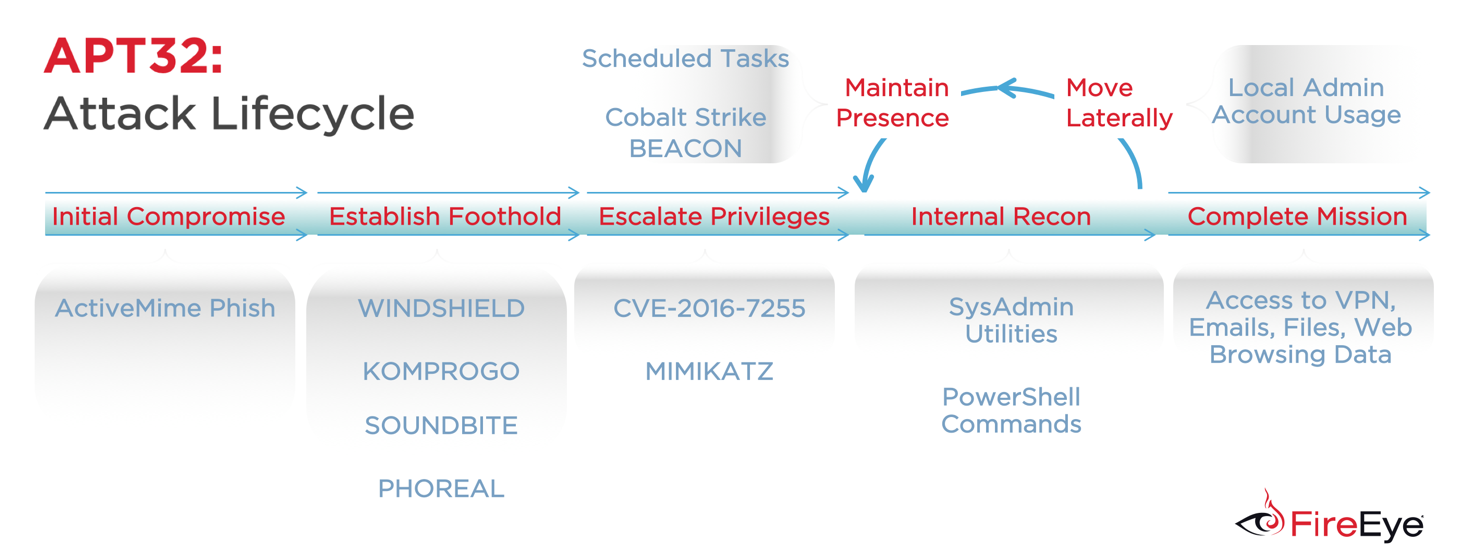

Figure 6 provides a summary of APT32 tools and techniques mapped to each stage of the attack lifecycle.
Outlook and Implications
Based on incident response investigations, product detections, and intelligence observations along with additional publications on the same operators, FireEye assesses that APT32 is a cyber espionage group aligned with Vietnamese government interests. The targeting of private sector interests by APT32 is notable and FireEye believes the actor poses significant risk to companies doing business in, or preparing to invest in, the country. While the motivation for each APT32 private sector compromise varied – and in some cases was unknown – the unauthorized access could serve as a platform for law enforcement, intellectual property theft, or anticorruption measures that could ultimately erode the competitive advantage of targeted organizations. Furthermore, APT32 continues to threaten political activism and free speech in Southeast Asia and the public sector worldwide. Governments, journalists, and members of the Vietnam diaspora may continue to be targeted.
While actors from China, Iran, Russia, and North Korea remain the most active cyber espionage threats tracked and responded to by FireEye, APT32 reflects a growing host of new countries that have adopted this dynamic capability. APT32 demonstrates how accessible and impactful offensive capabilities can be with the proper investment and the flexibility to embrace newly-available tools and techniques. As more countries utilize inexpensive and efficient cyber operations, there is a need for public awareness of these threats and renewed dialogue around emerging nation-state intrusions that go beyond public sector and intelligence targets.

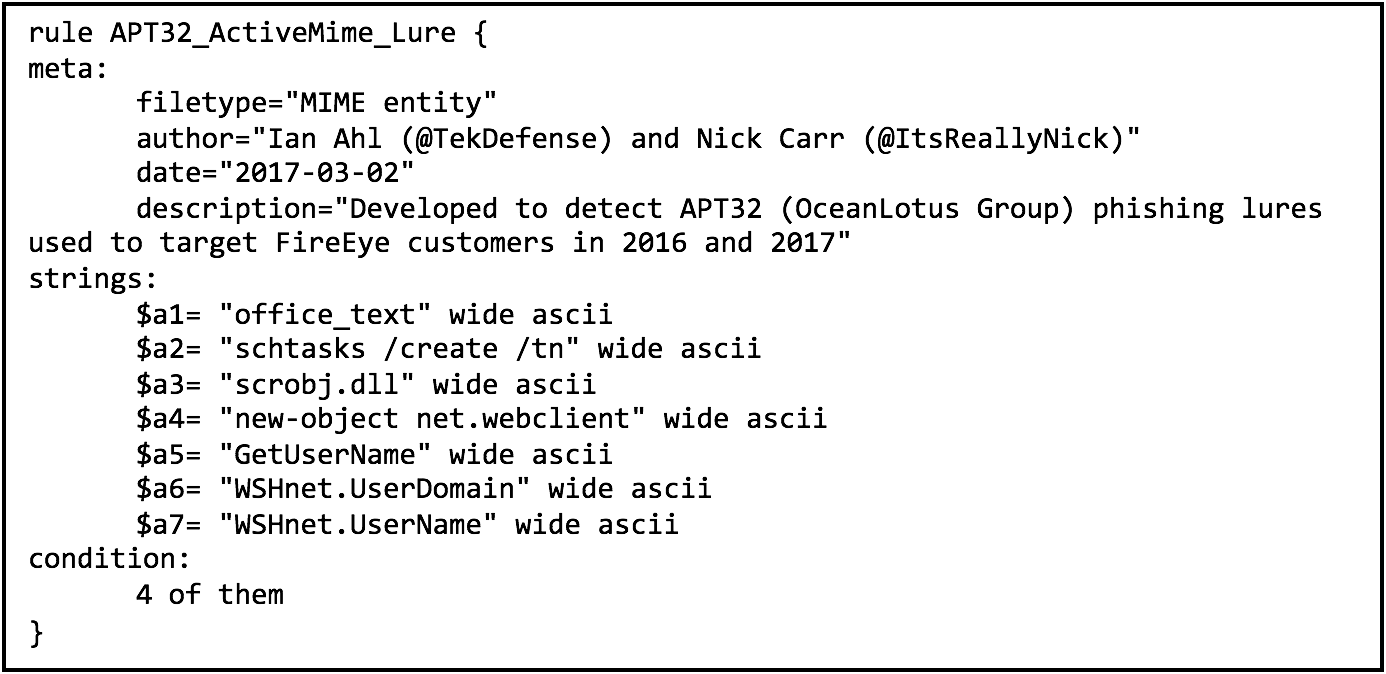

Figure 7 contains a Yara rule can be used to identify malicious macros associated with APT32’s phishing lures:
Table 4 contains a sampling of the infrastructure that FireEye has associated with APT32 C2.
Table 4: Sampling of APT32 C2 Infrastructure
