Introducing Monitor.app for macOS
UPDATE 2 (Oct. 24, 2018): Monitor.app now supports macOS 10.14.
UPDATE (April 4, 2018): Monitor.app now supports macOS 10.13.
As a malware analyst or systems programmer, having a suite of solid dynamic analysis tools is vital to being quick and effective. These tools enable us to understand malware capabilities and undocumented components of the operating system. One obvious tool that comes to mind is Procmon from the legendary Sysinternals Suite from Microsoft. Those tools only work on Windows though and we love macOS.
macOS has some fantastic dynamic instrumentation software included with the operating system and Xcode. In the past, we have used dynamic instrumentation tools such as Dtrace, a very powerful tracing subsystem built into the core of macOS. While it is very powerful and efficient, it commonly required us to write D scripts to get the interesting bits. We wanted something simpler.
Today, the Innovation and Custom Engineering (ICE) Applied Research team presents the public release of Monitor.app for macOS, a simple GUI application for monitoring common system events on a macOS host. Monitor.app captures the following event types:
- Process execution with command line arguments
- File creates (if data is written)
- File renames
- Network activity
- DNS requests and replies
- Dynamic library loads
- TTY Events
Monitor.app identifies system activities using a kernel extension (kext). Its focus is on capturing data that matters, with context. These events are presented in the UI with a rich search capability allowing users to hunt through event data for areas of interest.
The goal of Monitor is simplicity. When launching Monitor, the user is prompted for root credentials to launch a process and load our kext (don’t worry, the main UI process doesn’t run as root). From there, the user can click on the start button and watch the events roll in!
The UI is sparse with a few key features. There is the start/stop button, filter buttons, and a search bar. The search bar allows us to set simple filters on types of data we may want to filter or search for over all events. The event table is a listing of all the events Monitor is capable of presenting to the user. The filter buttons allow the user to turn off some classes of events. For example, if a TimeMachine backup were to kick off when the user was trying to analyze a piece of malware, the user can click the file system filter button and the file write events won’t clutter the display.

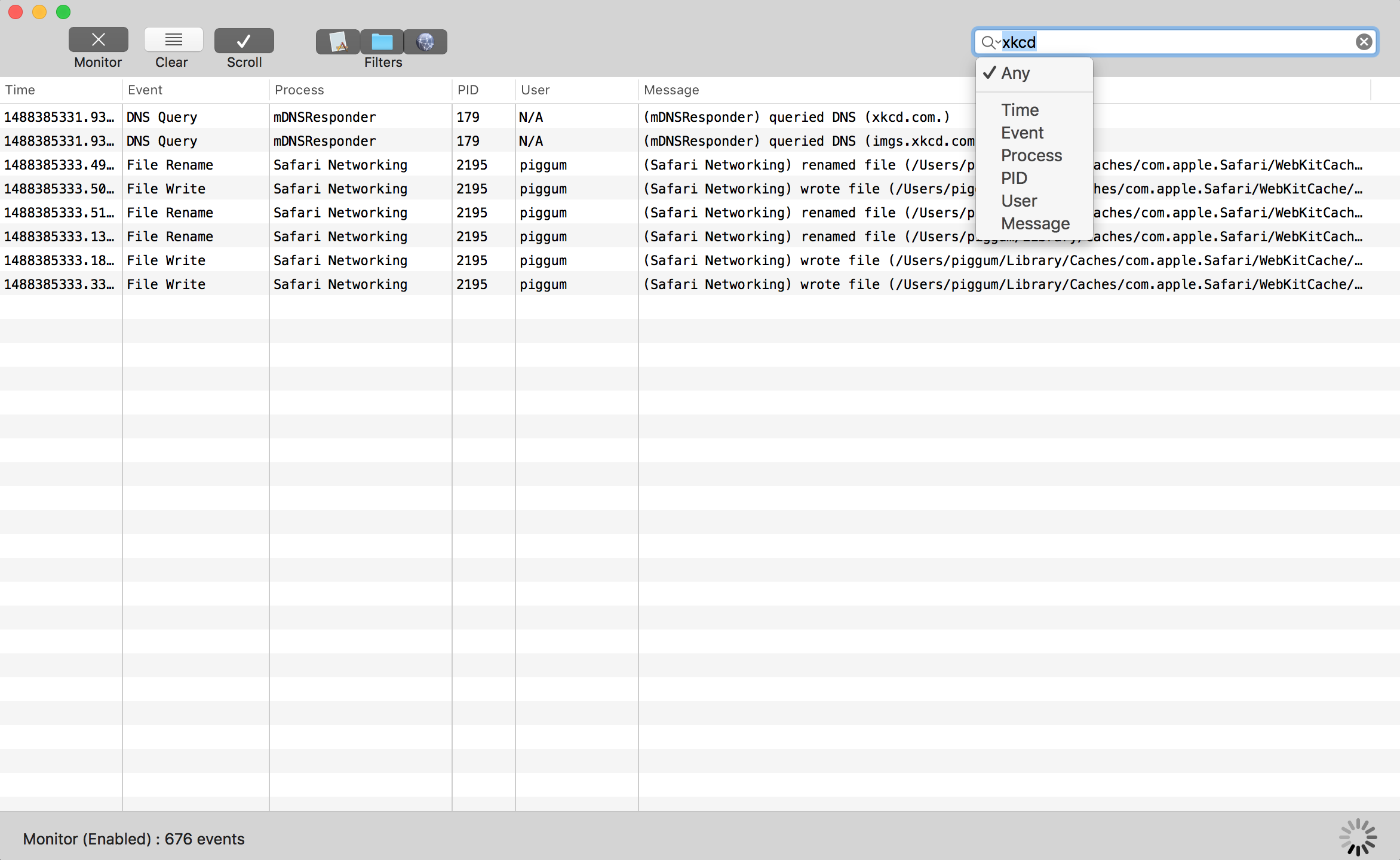

As an example, perhaps we were interested in seeing any processes that communicated with xkcd.com. We can simply use an “Any” filter and enter xkcd into the search bar, as seen in Figure 1.
We think you will be surprised how useful Monitor can be when trying to figure out how components of macOS or even malware work under the hood, all without firing up a debugger or D script.
Please send any feature requests/bugs to firstname.lastname@example.org.
