The FireEye OT-CSIO: An Ontology to Understand, Cross-Compare, and Assess Operational Technology Cyber Security Incidents

Daniel Kapellmann Zafra, Nathan Brubaker
Sep 30, 2019
5 min read
|   Last updated: Nov 25, 2022
Threat Research

The FireEye Operational Technology Cyber Security Incident Ontology (OT-CSIO)

While the number of threats to operational technology (OT) have significantly increased since the discovery of Stuxnet – driven by factors such as the growing convergence with information technology (IT) networks and the increasing availability of OT information, technology, software, and reference materials – we have observed only a small number of real-world OT-focused attacks. The limited sample size of well-documented OT attacks and lack of analysis from a macro level perspective represents a challenge for defenders and security leaders trying to make informed security decisions and risk assessments.

To help address this problem, FireEye Intelligence developed the OT Cyber Security Incident Ontology (OT-CSIO) to aid with communication with executives, and provide guidance for assessing risks. We highlight that the OT-CSIO focuses on high-level analysis and is not meant to provide in-depth insights into the nuances of each incident.

Our methodology evaluates four categories, which are targeting, impact, sophistication, and affected equipment architecture based on the Purdue Model (Table 7). Unlike other methodologies, such as MITRE's ATT&CK Matrix, FireEye Intelligence's OT-CSIO evaluates only the full aggregated attack lifecycle and the ultimate impacts. It does not describe the tactics, techniques, and procedures (TTPs) implemented at each step of the incident. Table 1 describes the four categories. Detailed information about each class is provided in Appendix 1.

Categories for FireEye Intelligence's OT-CSIO
Table 1: Categories for FireEye Intelligence's OT-CSIO

The OT-CSIO In Action

In Table 2 we list nine real-world incidents impacting OT systems categorized according to our ontology. We highlight that the ontology only reflects the ultimate impact of an incident, and it does not account for every step throughout the attack lifecycle. As a note, we cite public sources where possible, but reporting on some incidents is available to FireEye Threat Intelligence customers only.

Incident

Target

Sophistication

Impact

Impacted Equipment

Maroochy Shire Sewage Spill

(2000)

ICS-targeted

Medium

Disruption

Zone 3

Stuxnet

(2011)

ICS-targeted

High

Destruction

Zones 1-2

Shamoon

(2012)

ICS-targeted

Low

Destruction

Zone 4-5

Ukraine Power Outage

(2015)

ICS-targeted

Medium

Disruption, Destruction

Zone 2

Ukraine Power Outage

(2016)

ICS-targeted

High

Disruption

Zones 0-3

WannaCry Infection on HMIs

(2017)

Non-targeted

Low

Disruption

Zone 2-3

TEMP.Isotope Reconnaissance Campaign

(2017)

ICS-targeted

Low

Data Theft

Zones 2-4

TRITON Attack

(2017)

ICS-targeted

High

Disruption (likely building destructive capability)

Zone Safety, 1-5

Cryptomining Malware on European Water Utility

(2018)

Non-targeted

Low

Degradation

Zone 2/3

Financially Motivated Threat Actor Accesses HMI While Searching for POS Systems

(2019)

Non-targeted

Low

Compromise

Zone 2/3

Portable Executable File Infecting Malware Impacting Windows-based OT assets

(2019)

Non-targeted

Low

Degradation

Zone 2-3

Table 2: Categorized samples using the OT-CSIO

The OT-CSIO Matrix Facilitates Risk Management and Analysis

Risk management for OT cyber security is currently a big challenge given the difficulty of assessing and communicating the implications of high-impact, low-frequency events. Additionally, multiple risk assessment methodologies rely on background information to determine case scenarios. However, the quality of this type of analysis depends on the background information that is applied to develop the models or identify attack vectors. Taking this into consideration, the following matrix provides a baseline of incidents that can be used to learn about past cases and facilitate strategic analysis about future case scenarios for attacks that remain unseen, but feasible.

The FireEye OT-CSIO Matrix
Table 3: The FireEye OT-CSIO Matrix

As Table 3 illustrates, we have only identified examples for a limited set of OT cyber security incident types. Additionally, some cases are very unlikely to occur. For example, medium- and high-sophistication non-targeted incidents remain unseen, even if feasible. Similarly, medium- and high-sophistication data compromises on OT may remain undetected. While this type of activity may be common, data compromises are often just a component of the attack lifecycle, rather than an end goal.

How to Use the OT-CSIO Matrix

The OT-CSIO Matrix presents multiple benefits for the assessment of OT threats from a macro level perspective given that it categorizes different types of incidents and invites further analysis on cases that have not yet been documented but may still represent a risk to organizations. We provide some examples on how to use this ontology:

  • Classify different types of attacks and develop cross-case analysis to identify differences and similarities. Knowledge about past incidents can be helpful to prevent similar scenarios and to think about threats that have not been evaluated by an organization.
  • Leverage the FireEye OT-CSIO Matrix for communication with executives by sharing a visual representation of different types of threats, their sophistication and possible impacts. This tool can make it easier to communicate risk despite the limited data available for high-impact, low-frequency events. The ontology provides an alternative to assess risk for different types of incidents based on the analysis of sophistication and impact, where increased sophistication and impact generally equates to higher risk.
  • Develop additional case scenarios to foresee threats that have not been observed yet but may become relevant in the future. Use this information as support while working on risk assessments.

Outlook

FireEye Intelligence's OT-CSIO seeks to compile complex incidents into practical diagrams that facilitate communication and analysis. Categorizing these events is useful for visualizing the full threat landscape, gaining knowledge about previously documented incidents, and considering alternative scenarios that have not yet been seen in the wild. Given that the field of OT cyber security is still developing, and the number of well-documented incidents is still low, categorization represents an opportunity to grasp tendencies and ultimately identify security gaps.

Appendix 1: OT-CSIO Class Definitions

Target

This category comprises cyber incidents that target industrial control systems (ICS) and non-targeted incidents that collaterally or coincidentally impact ICS, such as ransomware.

Target category
Table 4: Target category

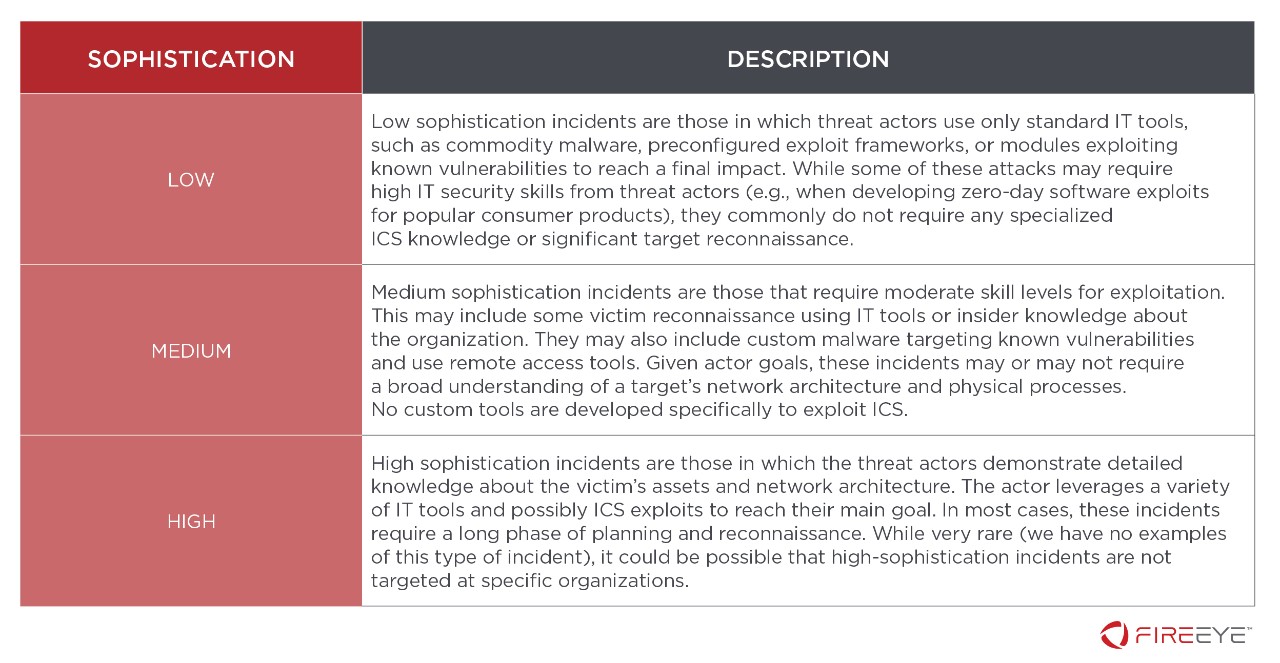

Sophistication

Sophistication refers to the technical and operational sophistication of attacks. There are three levels of sophistication, which are determined by the analyst based on the following criteria.

Sophistication category
Table 5: Sophistication category

Impact

The ontology reflects impact on the process or systems, not the resulting environmental impacts. There are five classes in this category, including data compromise, data theft, degradation, disruption, and destruction.

Impact category
Table 6: Impact category

Impacted Equipment

This category is divided based on FireEye Intelligence's adaptation of the Purdue Model. For the purpose of this ontology, we add an additional zone for safety systems.

Impacted equipment
Table 7: Impacted equipment
