In early 2019, FireEye Threat Intelligence identified a spear phishing email targeting government entities in Ukraine. The spear phishing email included a malicious LNK file with PowerShell script to download the second-stage payload from the command and control (C&C) server. The email was received by military departments in Ukraine and included lure content related to the sale of demining machines.

This latest activity is a continuation of spear phishing that targeted the Ukrainian Government as early as 2014. The email is linked to activity that previously targeted the Ukrainian Government with RATVERMIN. Infrastructure analysis indicates the actors behind the intrusion activity may be associated with the so-called Luhansk People's Republic (LPR).

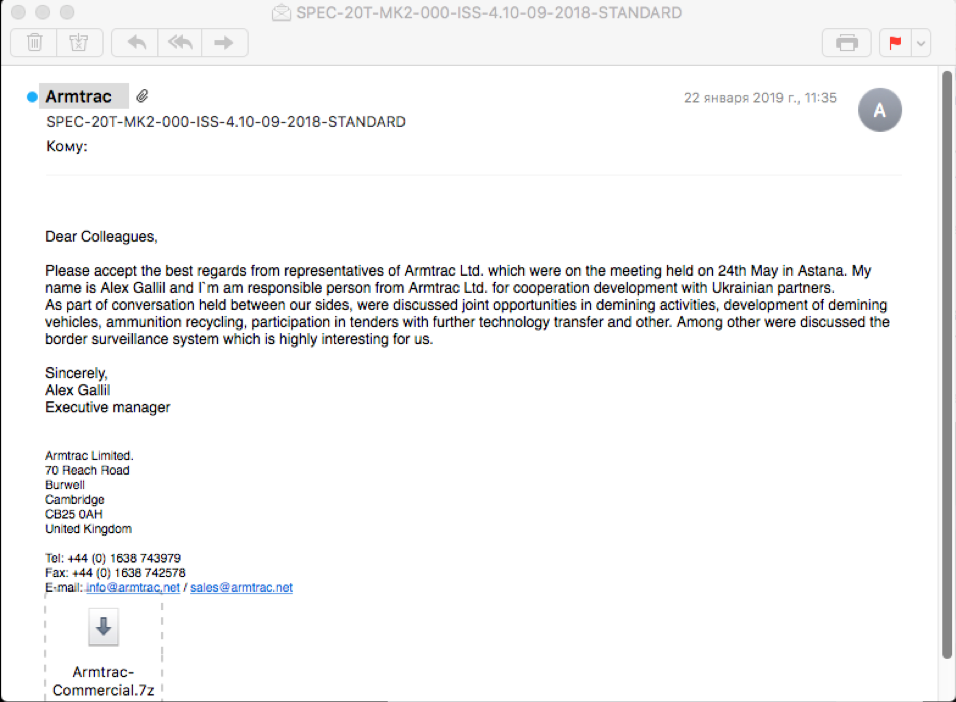

The spear phishing email, sent on Jan. 22, 2019, used the subject "SPEC-20T-MK2-000-ISS-4.10-09-2018-STANDARD," and the sender was forged as Armtrac, a defense manufacturer in the United Kingdom (Figure 1).

The email included an attachment with the filename "Armtrac-Commercial.7z" (MD5: 982565e80981ce13c48e0147fb271fe5). This 7z package contained "Armtrac-Commercial.zip" (MD5: e92d01d9b1a783a23477e182914b2454) with two benign Armtrac documents and one malicious LNK file with a substituted icon (Figure 2).

• Armtrac-20T-with-Equipment-35078.pdf (MD5: 0d6a46eb0d0148aafb34e287fcafa68f) is a benign document from the official Armtrac website.
• SPEC-20T-MK2-000-ISS-4.10-09-2018-STANDARD.pdf (MD5: bace12f3be3d825c6339247f4bd73115) is a benign document from the official Armtrac website.
• SPEC-10T-MK2-000-ISS-4.10-09-2018-STANDARD.pdf.lnk (MD5: ec0fb9d17ec77ad05f9a69879327e2f9) is a malicious LNK file that executes a PowerShell script. Interestingly, while the LNK file used a forged extension to impersonate a PDF document, the icon was replaced with a Microsoft Word document icon.

Sponsor Potentially Active Since 2014

Compilation times indicate that this actor, who focused primarily on Ukraine, may have been active since at least 2014. Their activity was first reported by FireEye Threat Intelligence in early 2018. They gradually increased in sophistication and leveraged both custom and open-source malware.

The 2018 campaign used standalone EXE or self-extracting RAR (SFX) files to infect victims. However, their recent activity showed increased sophistication by leveraging malicious LNK files. The group used open-source QUASARRAT and the RATVERMIN malware, which we have not seen used by any other groups. Domain resolutions and malware compile times suggest this group may have been active as early as 2014. Filenames and malware distribution data suggest the group is primarily focused on targeting Ukrainian entities.

Association With So-Called Luhansk People's Republic

FireEye Threat Intelligence analysis uncovered several indications that the actors behind this activity have ties to the breakaway so-called Luhansk People's Republic (LPR).

Registrant Overlap with Official So-Called LPR Website

Infrastructure analysis suggests these operators are linked to the so-called LPR and the persona "re2a1er1." The domain used as C&C by the previous LNK file (sinoptik[.]website) was registered under the email "re2a1er1@yandex.ru." The email address also registered the following domains.

Table 1: Related infrastructure

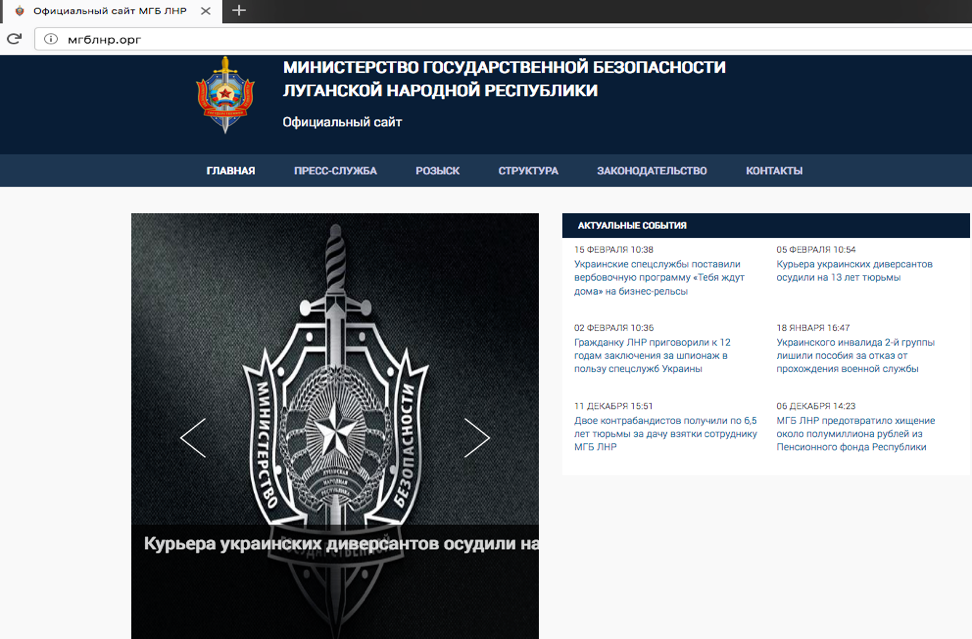

One of the domains, "xn--90adzbis.xn--c1avg" is a Punycode of "мгблнр.орг," which is the official website of the Ministry of State Security of the So-Called LPR (Figure 3). Ukraine legislation describes so-called LPR as "temporarily occupied territory" and its government as an "occupying administration of the Russian Federation."

Conclusions

This actor has likely been active since at least 2014, and its continuous targeting of the Ukrainian Government suggests a cyber espionage motivation. This is supported by the ties to the so-called LPR's security service. While more evidence is needed for definitive attribution, this activity showcases the accessibility of competent cyber espionage capabilities, even to sub-state actors. While this specific group is primarily a threat to Ukraine, nascent threats to Ukraine have previously become international concerns and bear monitoring.

Technical Annex

The LNK file (SPEC-10T-MK2-000-ISS-4.10-09-2018-STANDARD.pdf.lnk ) included the following script (Figure 4) to execute a PowerShell script with Base64-encoded script:

Figure 4: LNK file script

The following command (Figure 5) was received after decoding the Base64-encoded string:

Figure 5: LNK file command

The PowerShell script sends a request to URL "http://sinoptik[.]website/EuczSc." Unfortunately, the server was unreachable during analysis.

Network Infrastructure Linked to Attackers

The passive DNS records of the C&C domain "sinoptik[.]website" included the following IPs:

Table 2: Network infrastructure linked to attackers

Domains previously connected to RATVERMIN (aka VERMIN) and QUASARRAT (aka QUASAR) also resolved to IP "185.125.46.158" and include the following:

Table 3: Additional malware linked to the attackers

RATVERMIN is a .NET backdoor that FireEye Threat Intelligence started tracking in March 2018. It has also been reported in public reports and blog posts.

Operators Highly Aggressive, Proactive

The actor is highly interactive with its tools and has responded within a couple of hours of receiving a new victim, demonstrating its ability to react quickly. An example of this hands-on style of operation occurred during live malware analysis. RATVERMIN operators observed that the malware was running from an unintended target at approximately 1700 GMT (12:00 PM Eastern Standard Time on a weekday) and promptly executed the publicly available Hidden Tear ransomware (saved to disk as hell0.exe, MD5: 8ff9bf73e23ce2c31e65874b34c54eac). The ransomware process was killed before it could execute successfully. If the Hidden Tear continued execution, a file would have been left on the desktop with the following message:

"Files have been encrypted with hidden tear. Send me some bitcoins or kebab. And I also hate night clubs, desserts, being drunk."

When live analysis resumed, the threat group behind the attack started deleting all the analysis tools on the machine. Upon resetting the machine and executing the malware again, this time with a text file open asking why they sent ransomware, the threat group responded by sending the following message via RATVERMIN's C&C domain (Figure 6):

Figure 6: RATVERMIN's C&C domain message

Related Samples

Further research uncovered additional LNK files with PowerShell scripts that connect to the same C&C server.

• Filename: Висновки. S021000262_1901141812000. Scancopy_0003. HP LaserJet Enterprise 700 M775dn(CC522A).docx.lnk (Ukrainian translation: Conclusion)
  • MD5: fe198e90813c5ee1cfd95edce5241e25
  • Description: LNK file also has the substituted Microsoft Word document icon and sends a request to the same C&C domain
  • C&C: http://sinoptik[.]website/OxslV6

Figure 7: Additional LNK files with PowerShell scripts

• Filename: КМУ база даних.zip (Ukrainian translation: Cabinet of Ministers of Ukraine database)
  • MD5: a5300dc3e19f0f0b919de5cda4aeb71c
  • Description: ZIP archive containing a malicious LNK file
• Filename: Додаток.pdf (Ukrainian translation: Addition)
  • MD5: a40fb835a54925aea12ffaa0d76f4ca7
  • Description: Benign decoy document
• Filename: КМУ_база_даних_органи_упр,_СГ_КМУ.rtf.lnk
  • MD5: 4b8aac0649c3a846c24f93dc670bb1ef
  • Description: Malicious LNK that executes a PowerShell script
  • C&C: http://cdn1186[.]site/zG4roJ

Figure 8: Additional LNK files with PowerShell scripts

FireEye Detection

FireEye detection names for the indicators in the attack include the following:

Summary of Indicators

Malicious package and LNK files

• 982565e80981ce13c48e0147fb271fe5
• e92d01d9b1a783a23477e182914b2454
• ec0fb9d17ec77ad05f9a69879327e2f9
• fe198e90813c5ee1cfd95edce5241e25
• a5300dc3e19f0f0b919de5cda4aeb71c
• 4b8aac0649c3a846c24f93dc670bb1ef

Related File

• 0d6a46eb0d0148aafb34e287fcafa68f (decoy document)
• bace12f3be3d825c6339247f4bd73115 (decoy document)
• a40fb835a54925aea12ffaa0d76f4ca7 (decoy document)

Quasar RAT Samples

• 50b1f0391995a0ce5c2d937e880b93ee
• 47161360b84388d1c254eb68ad3d6dfa
• 07633a79d28bb8b4ef8a6283b881be0e
• dc0ab74129a4be18d823b71a54b0cab0
• bbcce9c91489eef00b48841015bb36c1
• 3ddc543facdc43dc5b1bdfa110fcffa3
• 5b5060ebb405140f87a1bb65e06c9e29
• 80b3d1c12fb6aaedc59ce4323b0850fe
• d2c6e6b0fbe37685ddb865cf6b523d8c
• dc0ab74129a4be18d823b71a54b0cab0
• dca799ab332b1d6b599d909e17d2574c

RATVERMIN

• 242f0ab53ac5d194af091296517ec10a
• 5feae6cb9915c6378c4bb68740557d0a
• 5e974179f8ef661a64d8351e6df53104
• 0b85887358fb335ad0dd7ccbc2d64bb4
• 9f88187d774cc9eaf89dc65479c4302d
• 632d08020499a6b5ee4852ecadc79f2e
• 47cfac75d2158bf513bcd1ed5e3dd58c
• 8d8a84790c774adf4c677d2238999eb5
• 860b8735995df9e2de2126d3b8978dbf
• 987826a19f7789912015bb2e9297f38b
• a012aa7f0863afbb7947b47bbaba642e
• a6ecfb897ca270dd3516992386349123
• 7e2f581f61b9c7c71518fea601d3eeb3
• b5a6aef6286dd4222c74257d2f44c4a5
• 0f34508772ac35b9ca8120173c14d5f0 (RATVERMIN's keylogger)
• 86d2493a14376fbc007a55295ef93500 (RATVERMIN's encryption tool)
• 04f1aa35525a44dcaf51d8790d1ca8a0 (RATVERMIN helper functions)
• 634d2a8181d08d5233ca696bb5a9070d (RATVERMIN helper functions)
• d20ec4fdfc7bbf5356b0646e855eb250 (RATVERMIN helper functions)
• 5ba785aeb20218ec89175f8aaf2e5809 (RATVERMIN helper functions)
• b2cf610ba67edabb62ef956b5e177d3a (RATVERMIN helper functions)
• 7e30836458eaad48bf57dc1decc27d09 (RATVERMIN helper functions)
• df3e16f200eceeade184d6310a24c3f4 (RATVERMIN crypt functions)
• 86d2493a14376fbc007a55295ef93500 (RATVERMIN crypt functions)
• d72448fd432f945bbccc39633757f254 (RATVERMIN task scheduler tool)
• e8e954e4b01e93f10cefd57fce76de25 (RATVERMIN task scheduler tool)

Hidden Tear Ransomware

• 8ff9bf73e23ce2c31e65874b34c54eac

Malicious Infrastructure

• akamainet022[.]info
• akamainet066[.]info
• akamainet024[.]info
• akamainet023[.]info
• akamainet066[.]info
• akamainet021[.]info
• www.akamainet066[.]info
• www.akamainet023[.]info
• www.akamainet022[.]info
• www.akamainet021[.]info
• akamaicdn[.]ru
• cdnakamai[.]ru
• mailukr[.]net
• notifymail[.]ru
• www.notifymail[.]ru
• tech-adobe.dyndns[.]biz
• sinoptik[.]website
• cdn1186[.]site
• news24ua[.]info
• http://sinoptik[.]website/EuczSc
• http://sinoptik[.]website/OxslV6
• http://cdn1186[.]site/zG4roJ
• 206.54.179.196
• 195.78.105.23
• 185.125.46.24
• 185.158.153.222
• 188.227.16.73
• 212.116.121.46
• 185.125.46.158
• 94.158.46.251
• 188.227.75.189

Correlated Infrastructure

• 78.140.167.89 (pdns)
• 1ua[.]eu (pdns)
• 24ua[.]website (pdns, registered by re2a1er1@yandex.ru)
• cdn1214[.]site (pdns)
• censor[.]website (pdns, registered by re2a1er1@yandex.ru)
• fakty[.]website (pdns, registered by re2a1er1@yandex.ru)
• gismeteo[.]website (pdns, registered by re2a1er1@yandex.ru)
• lmeta[.]eu (pdns)
• me.co[.]ua (pdns, registered by re2a1er1@yandex.ru)
• milnews[.]info (pdns)
• mj2[.]pw (pdns, registered by re2a1er1@yandex.ru)
• novaposhta[.]website (pdns, registered by re2a1er1@yandex.ru)
• olx[.]website (pdns, registered by re2a1er1@yandex.ru)
• www.olx[.]website (pdns, registered by re2a1er1@yandex.ru)
• onlineua[.]website (pdns, registered by re2a1er1@yandex.ru)
• r2a[.]pw (pdns, registered by re2a1er1@yandex.ru)
• rarnbier[.]ru (pdns)
• rbc[.]website (pdns)
• rst[.]website (pdns, registered by re2a1er1@yandex.ru)
• satv[.]pw (pdns, registered by re2a1er1@yandex.ru)
• slaviasoft[.]website (pdns, registered by re2a1er1@yandex.ru)
• tv.co[.]ua (pdns, registered by re2a1er1@yandex.ru)
• uatoday[.]website (pdns, registered by re2a1er1@yandex.ru)
• ukrnews[.]website (pdns, registered by re2a1er1@yandex.ru)
• www.ukrnews[.]website (pdns, registered by re2a1er1@yandex.ru)
• ukrposhta[.]website (pdns, registered by re2a1er1@yandex.ru)
• unian[.]pw (pdns)
• vj2[.]pw (pdns, registered by re2a1er1@yandex.ru)
• windowsupdate.kiev[.]ua (pdns)
• xn--90adzbis.xn--c1avg (registered by re2a1er1@yandex.ru)
• z1k[.]pw (pdns, registered by re2a1er1@yandex.ru)
• 188.164.251.61 (pdns)
• 188.227.17.68 (pdns)
• 206.54.179.160 (pdns of many malicious domains)
• 208.69.116.100 (pdns)
• 208.69.116.144 (pdns)
• 5.200.53.181 (pdns)
• 78.140.162.22 (pdns)
• 78.140.167.137 (pdns)
• 88.85.86.229 (pdns)
• 88.85.95.72 (pdns)
• 94.158.34.2 (pdns)
• 94.158.47.228 (pdns)
