WinRAR Zero-day Abused in Multiple Campaigns
WinRAR, an over 20-year-old file archival utility used by over 500 million users worldwide, recently acknowledged a long-standing vulnerability in its code-base. A recently published path traversal zero-day vulnerability, disclosed in CVE-2018-20250 by Check Point Research, enables attackers to specify arbitrary destinations during file extraction of ‘ACE’ formatted files, regardless of user input. Attackers can easily achieve persistence and code execution by creating malicious archives that extract files to sensitive locations, like the Windows “Startup” Start Menu folder. While this vulnerability has been fixed in the latest version of WinRAR (5.70), WinRAR itself does not contain auto-update features, increasing the likelihood that many existing users remain running out-of-date versions.
FireEye has observed multiple campaigns leveraging this vulnerability, in addition to those already discussed by 360 Threat Intelligence Center. Below we will look into some campaigns we came across that used customized and interesting decoy documents with a variety of payloads including ones which we have not seen before and the ones that used off-the-shelf tools like PowerShell Empire.
Campaign 1: Impersonating an Educational Accreditation Council
When the ACE file Scan_Letter_of_Approval.rar is extracted with vulnerable WinRAR versions lower than 5.70, it creates a file named winSrvHost.vbs in the Windows Startup folder without the user’s consent. The VBScript file is executed the next time Windows starts up.

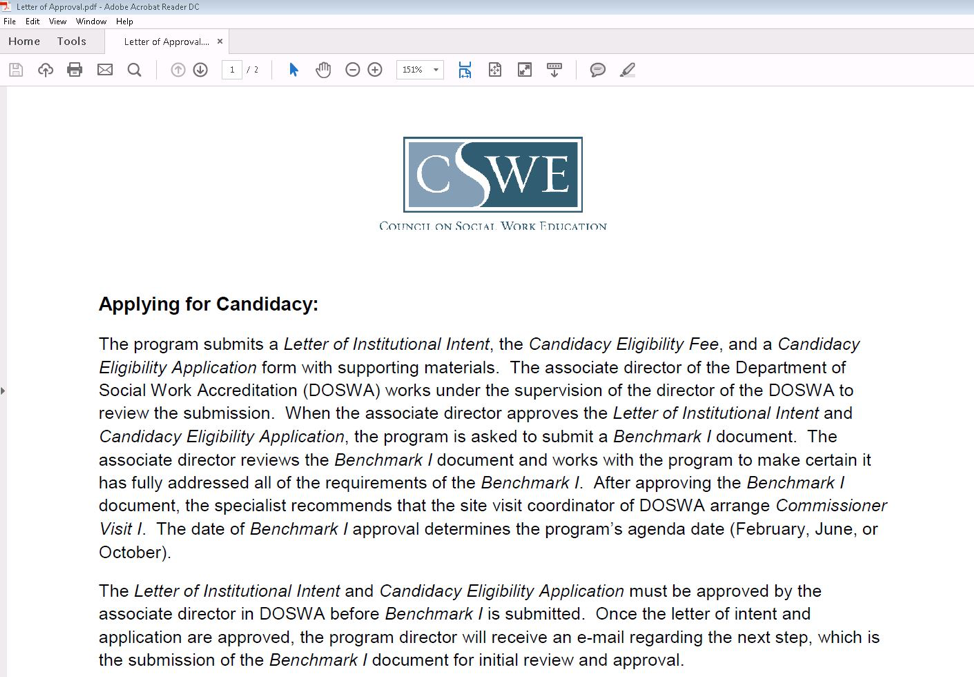

To avoid user suspicion, the ACE file contains a decoy document, “Letter of Approval.pdf”, which purports to be from CSWE, the Council on Social Work Education as shown in Figure 1. This seems to be copied from CSWE website.

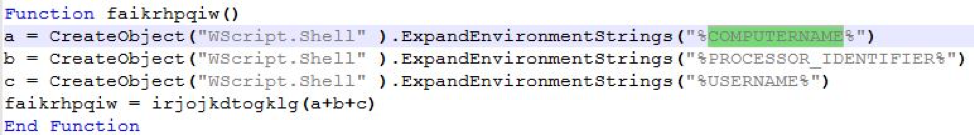

The VBS file in the Startup folder will be executed by wscript.exe when Windows starts up. The VBS code first derives an ID for the victim using custom logic based on a combination of the ComputerName, Processor_identifier and Username. It obtains these from environment strings, as shown in Figure 2.

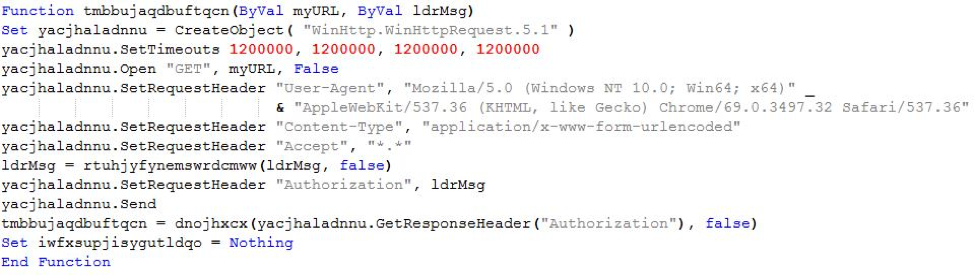

Interestingly, the backdoor communicates with the command and control (C2) server using the value of the Authorization HTTP header using the code in Figure 3.

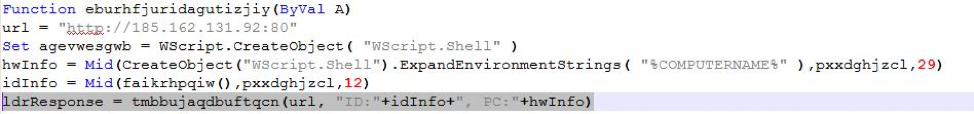

The VBS backdoor first sends the base64-encoded data, including the victim ID and the ComputerName, using the code in Figure 4.
It then extracts the base64-encoded data in the Authorization header of the HTTP response from the C2 server and decodes it. The decoded data starts with the instruction code from the C2 server, followed with additional parameters.

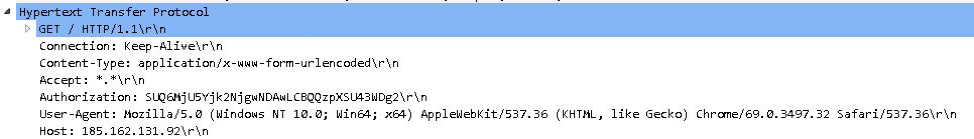

The malware reaches out to the C2 server at 185[.]162.131.92 via an HTTP request. Actual communication is via the Authorization field, as shown in Figure 5.
Upon decoding the value of the Authorization field, it can be seen that the malware is sending the Victim ID and the computer name to the C2 server. The C2 server responds with the commands in the value of the Authorization HTTP header, as shown in Figure 6.
Upon decoding, the commands are found to be “ok ok”, which we believe is the default C2 command. After some C2 communication, the C2 server responded with instructions to download the payload from hxxp://185.49.71[.]101/i/pwi_crs.exe, which is a Netwire RAT.
Commands Supported by VBS Backdoor
Delete the VBS file and exit process
Download a file from a URL and execute it
Get hardware info
Look for antivirus installed from a predefined list.
Letter of Approval.pdf
Campaign 2: Attack on Israeli Military Industry
Based on the email uploaded to VirusTotal, the attacker seems to send a spoofed email to the victim with an ACE file named SysAid-Documentation.rar as an attachment. Based on the VirusTotal uploader and the email headers, we believe this is an attack on an Israeli military company.

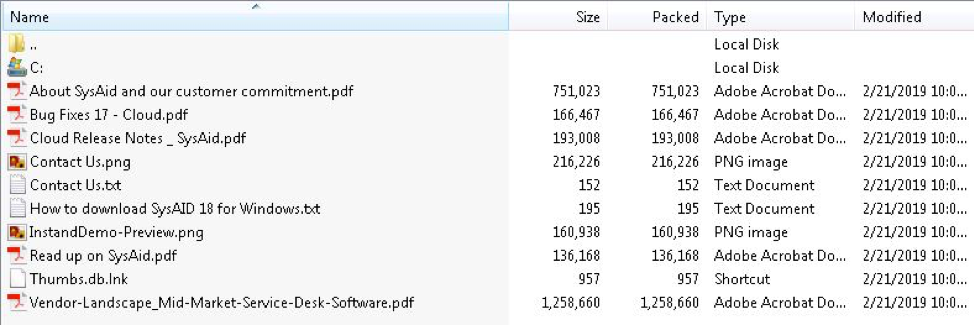

The ACE file contains decoy files related to documentation for SysAid, a help desk service based in Israel. These files are shown as they would be displayed in WinRAR in Figure 7.

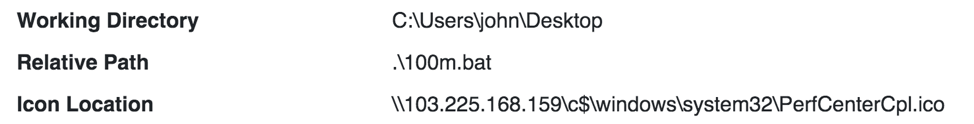

This LNK file target is ‘C:\Users\john\Desktop\100m.bat’. But when we look at the icon location using a LNK parser, as shown in Figure 8, it points to an icon remotely hosted on one of the C2 servers, which can be used to steal NTLM hashes.
Upon extraction, WinRAR copies a previously unknown payload we call SappyCache to the Startup folder with the file name ‘ekrnview.exe’. The payload is executed the next time Windows starts up.
SappyCache tries to fetch the next-stage payload using three approaches:

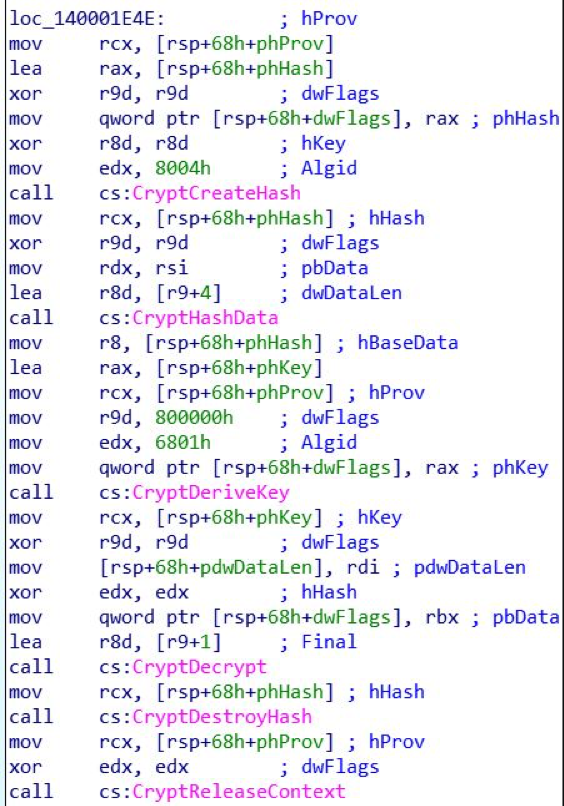

1) Decrypting a File: The malware tries to read the file at %temp%\..\GuiCache.db. If it is successful, it tries to decrypt it using RC4 to get the C2 URLs, as shown in Figure 9.

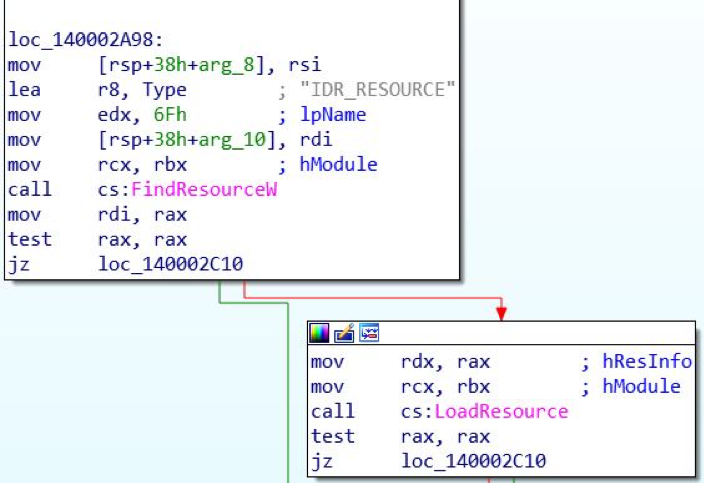

2) Decrypting a Resource: If it is not successful in retrieving the C2 URL using the previous method, the malware tries to retrieve the encrypted C2 URLs from a resource section, as shown in Figure 10. If it is successful, it will decrypt the C2 URLs using RC4.
3) Retrieving From C2: If it is not successful in retrieving the C2 URLs using those previous two methods, the malware tries to retrieve the payload from four different hardcoded URLs mentioned in the indicators. The malware creates the HTTP request using the following information:

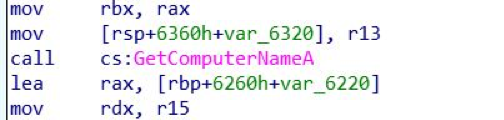

- Computer Name, retrieved using the GetComputerNameA function, as the HTTP parameter ‘name’ (Figure 11).

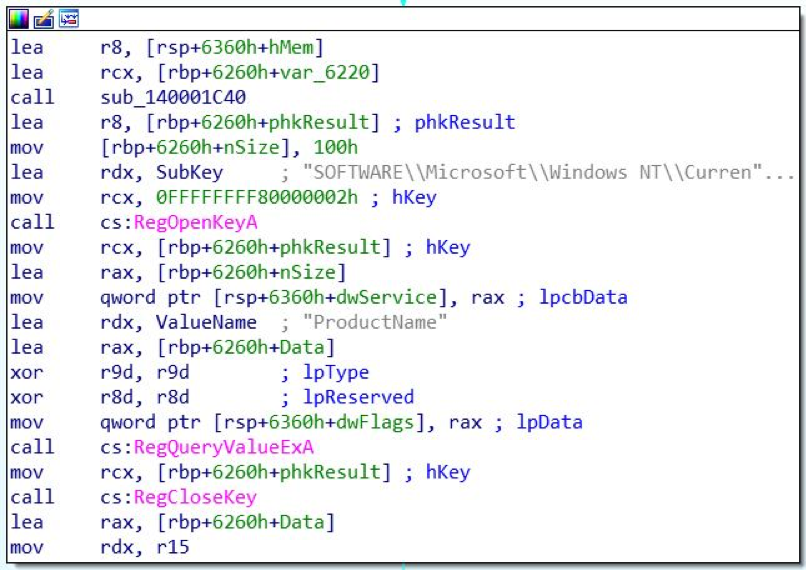

- Windows operating system name, retrieved by querying the ProductName value from the registry key SOFTWARE\Microsoft\Windows NT\CurrentVersion, as the HTTP parameter ‘key’ (Figure 12).
- The module name of the malware, retrieved using the GetModuleFileNameA function, as the HTTP parameter ‘page’ (Figure 13).

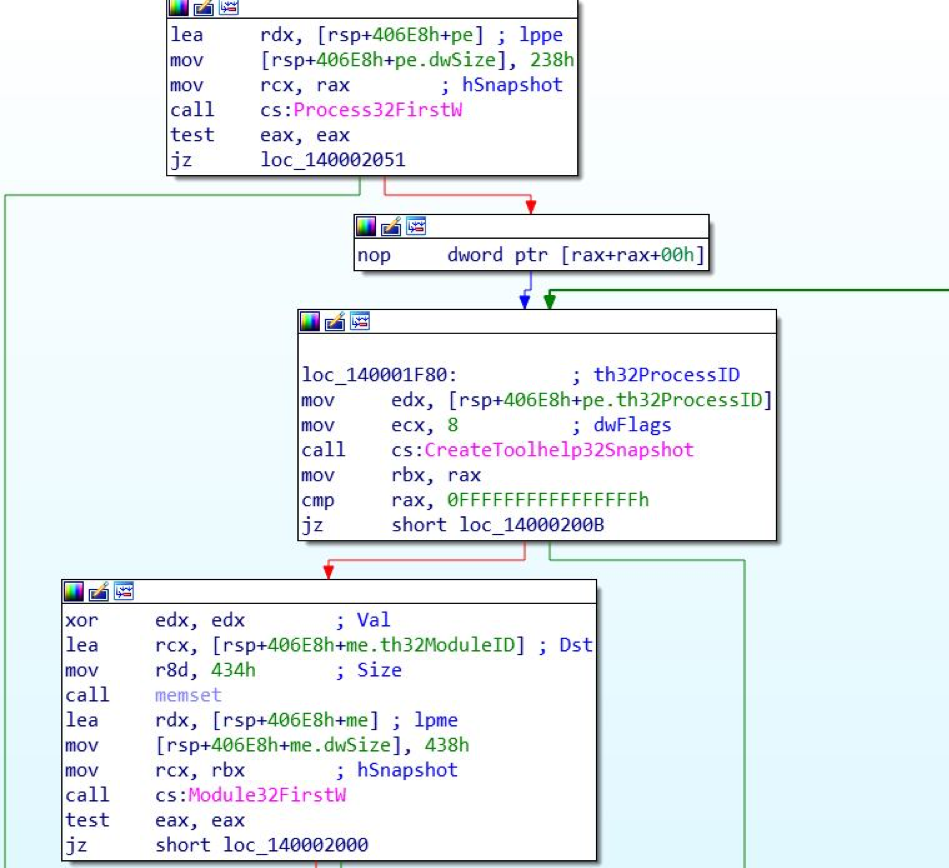

- The list of processes and their module names, retrieved using the Process32First and Module32First APIs, as the HTTP parameter ‘session_data’ (Figure 14).

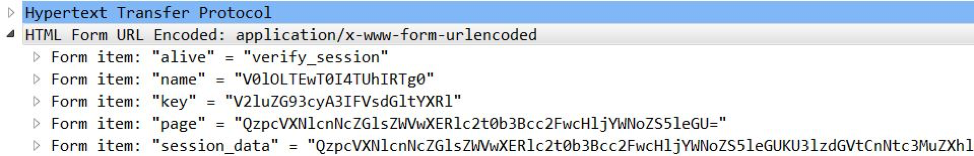

A fragment of the HTTP request that is built with the information gathered is shown in Figure 15.
If any of the aforementioned methods is successful, the malware tries to execute the decrypted payload. During our analysis, the C2 server did not respond with a next-level payload.
Campaign 3: Potential Attack in Ukraine with Empire Backdoor
The ACE file named zakon.rar is propagated using a malicious URL mentioned in the indicators. 360 Threat Intelligence Center has also encountered this campaign.

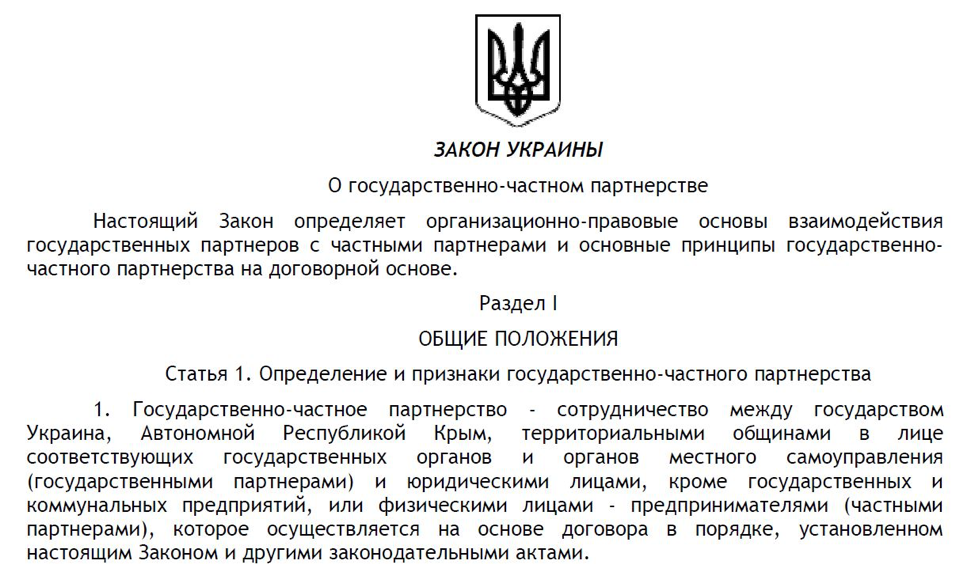

The ACE file contains a file named Ukraine.pdf, which contains a message on the law of Ukraine about public-private partnerships that purports to be a message from Viktor Yanukovych, former president of Ukraine (Figure 16 and Figure 17).
Based on the decoy PDF name, the decoy PDF content and the VirusTotal uploader, we believe this is an attack on an individual in Ukraine.

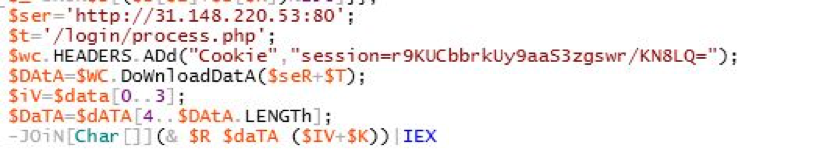

When the file contents are extracted, WinRAR drops a .bat file named mssconf.bat in the Startup folder. The batch file contains commands that invoke base64-encoded PowerShell commands. After decoding, the PowerShell commands invoked are found to be the Empire backdoor, as shown in Figure 18. We did not observe any additional payloads at the time of analysis.
Campaign 4: Credential and Credit Card Dumps as Decoys
This campaign uses credential dumps and likely stolen credit card dumps as decoy documents to distribute different types of RATs and password stealers.

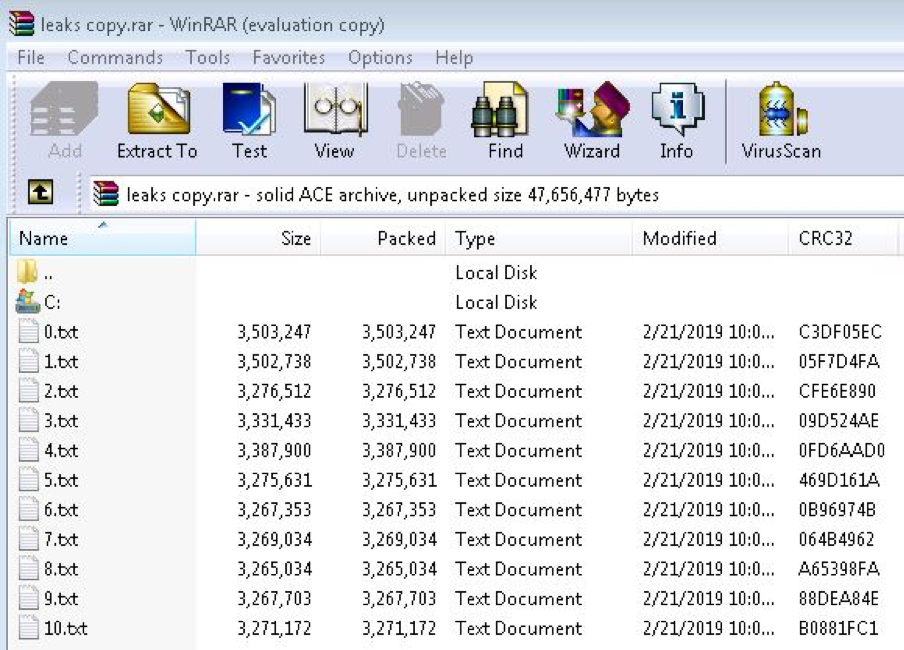

One file, ‘leaks copy.rar’, used text files that contained stolen email IDs and passwords as decoys. These files are shown as they would be displayed in WinRAR in Figure 19.

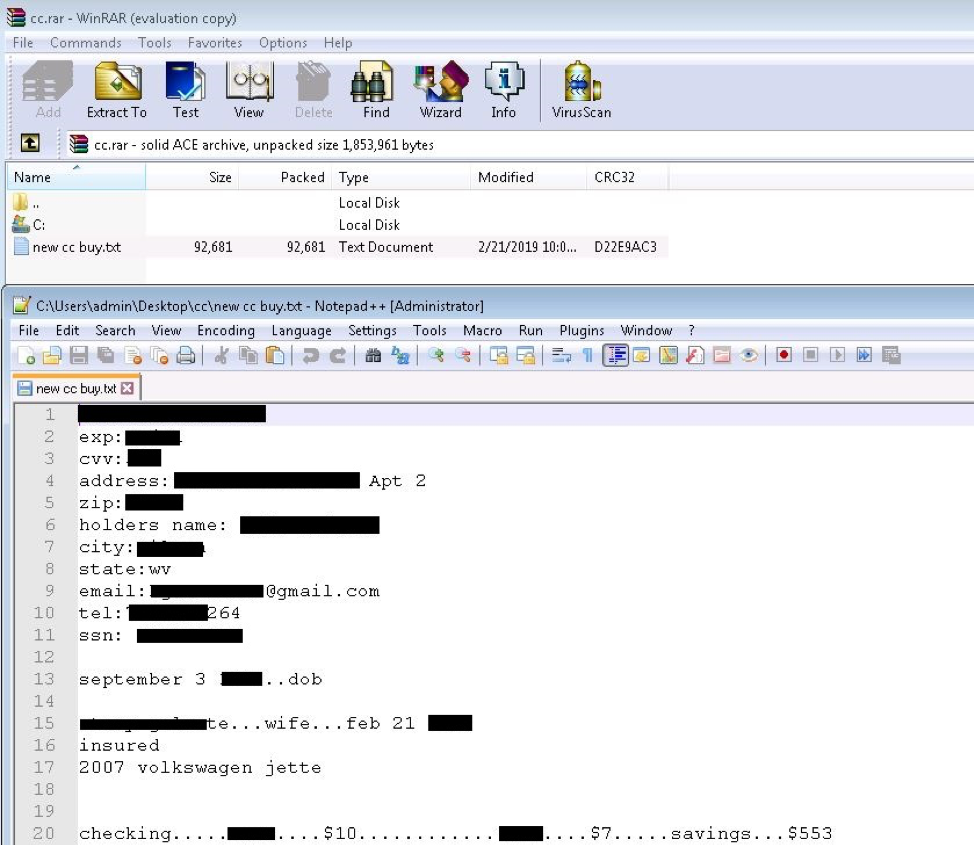

Another file, ‘cc.rar’, used a text file containing stolen credit card details as a decoy. The file as it would be displayed in WinRAR and sample contents of the decoy file are shown in Figure 20.

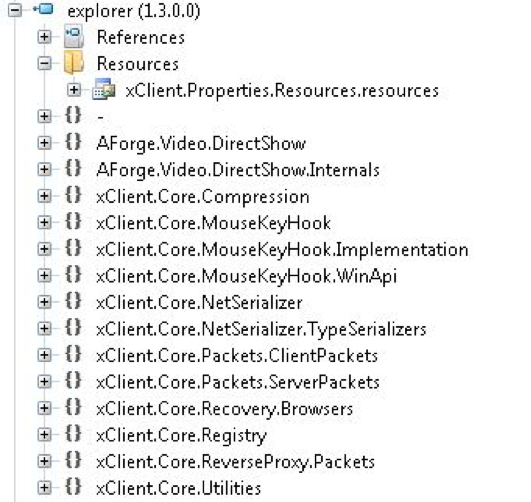

This campaign used payloads from different malware families. To keep the draft concise, we did not include the analysis of all of them. The decompilation of one of the payloads with hash 1BA398B0A14328B9604EEB5EBF139B40 shows keylogging capabilities (Figure 21). We later identified this sample as QuasarRAT.

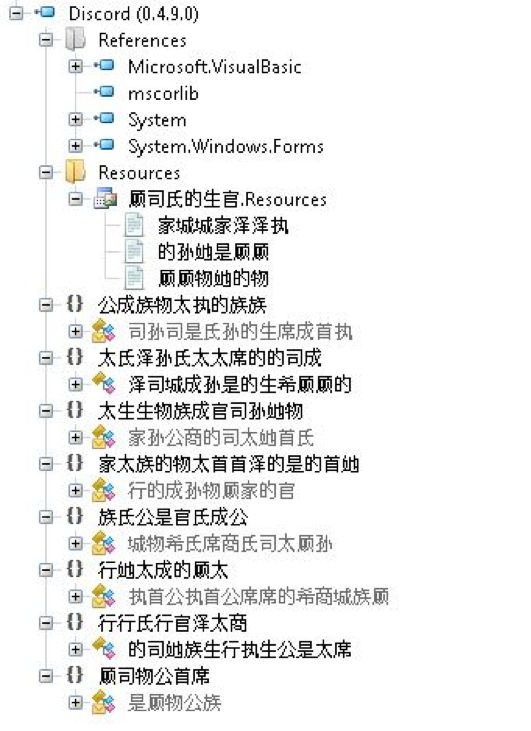

The decompilation of all the .NET-based payload shows that much of the code is written in Chinese. The decompilation of malware with hash BCC49643833A4D8545ED4145FB6FDFD2 containing Chinese text is shown in Figure 22. We later identified this sample as Buzy.
The other payloads also have similar keylogging, password stealing and standard RAT capabilities. The VirusTotal submissions show the use of different malware families in this campaign and a wide range of targeting.
Hashes of ACE Files
Hashes of Payloads
FireEye detection names for the indicators in the attack:
FireEye Endpoint Security
IOC: WINRAR (EXPLOIT)
FireEye Network Security
FireEye Email Security
We have seen how various threat actors are abusing the recently disclosed WinRAR vulnerability using customized decoys and payloads, and by using different propagation techniques such as email and URL. Because of the huge WinRAR customer-base, lack of auto-update feature and the ease of exploitation of this vulnerability, we believe this will be used by more threat actors in the upcoming days.
Traditional AV solutions will have a hard time providing proactive zero-day detection for unknown malware families. FireEye MalwareGuard, a component of FireEye Endpoint Security, detects and blocks all the PE executables mentioned in this blog post using machine learning. It’s also worth noting that this vulnerability allows the malicious ACE file to write a payload to any path if WinRAR has sufficient permissions, so although the exploits that we have seen so far chose to write the payload to startup folder, a more involved threat actor can come up with a different file path to achieve code execution so that any behavior based rules looking for WinRAR writing to the startup folder can be bypassed. Enterprises should consider blocking vulnerable WinRAR versions and mandate updating WinRAR to the latest version.
FireEye Endpoint Security, FireEye Network Security and FireEye Email Security detect and block these campaigns at several stages of the attack chain.
Special thanks to Jacob Thompson, Jonathan Leathery and John Miller for their valuable feedback on this blog post.
