WOW64!Hooks: WOW64 Subsystem Internals and Hooking Techniques
Microsoft is known for their backwards compatibility. When they rolled out the 64-bit variant of Windows years ago they needed to provide compatibility with existing 32-bit applications. In order to provide seamless execution regardless of application bitness, the WoW (Windows on Windows) system was coined. This layer, which will be referred to as ‘WOW64’ from here on out, is responsible for translating all Windows API calls from 32-bit userspace to the 64-bit operating system kernel. This blog post is broken up into two sections. First we start by diving deep into the WOW64 system. To do this, we trace a call from 32-bit userspace and follow the steps it takes to finally transition to the kernel. The second part of the post assesses two hooking techniques and their effectiveness. I will cover how this system works, the ways malware abuses it, and detail a mechanism by which all WoW syscalls can be hooked from userspace. Note that all information here is true as of Windows 10, version 2004 and in some cases has changed from how previous Windows versions were implemented.
First and foremost, this is a topic which has existing research by multiple authors. This work was critical in efficient exploration of the internals and research would have taken much longer had these authors not publicly posted their awesome work. I would like to callout the following references:
- (wbenny): An extremely detailed view of WOW64 internals on ARM
- (ReWolf): A PoC heaven’s gate implementation
- (JustasMasiulis): A very clean C++ heaven’s gate implementation
- (MalwareTech): A WOW64 segmentation explanation

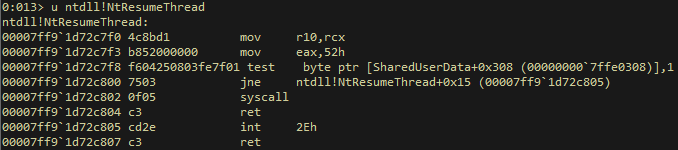

To understand how the WOW64 system works internally we will explore the call sequence starting in 32-bit usermode before transitioning into the kernel from within a system DLL. Within these system DLLs the operating system will check arguments and eventually transition to a stub known as a syscall stub. This syscall stub is responsible for servicing the API call in the kernel. On a 64-bit system, the syscall stub is straightforward as it directly executes the syscall instruction as shown in Figure 1.

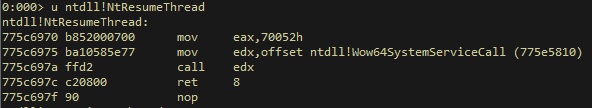

Figure 2 shows a syscall stub for a 32-bit process running on WOW64.
Notice that instead of a syscall instruction in the WOW64 version, Wow64SystemServiceCall is called. In the WOW64 system what would normally be an entry into the kernel is instead replaced by a call to a usermode routine. Following this Wow64SystemServiceCall, we can see in Figure 3 that it immediately performs an indirect jmp through a pointer named Wow64Transition.
Note that the Wow64SystemServiceCall function is found within ntdll labeled as ntdll_77550000; a WOW64 process has two ntdll modules loaded, a 32-bit one and a 64-bit one. WinDbg differentiates between these two by placing the address of the module after the 32-bit variant. The 64-bit ntdll can be found in %WINDIR%\System32 and the 32-bit in %WINDIR%\SysWOW64. In the PDBs, the 64bit and 32bit ntdlls are referred to as ntdll.pdb and wntdll.pdb respectively, try loading them in a disassembler! Continuing with the call trace, if we look at what the Wow64Transition pointer holds we can see its destination is wow64cpu!KiFastSystemCall. As an aside, note that the address of wow64cpu!KiFastSystemCall is held in the 32-bit TEB (Thread Environment Block) via member WOW32Reserved, this isn’t relevant for this trace but is useful to know. In Figure 4 we see the body of KiFastSystemCall.
The KiFastSystemCall performs a jmp using the 0x33 segment selector to a memory location just after the instruction. This 0x33 segment transitions the CPU into 64-bit mode via a GDT entry as described by (MalwareTech).

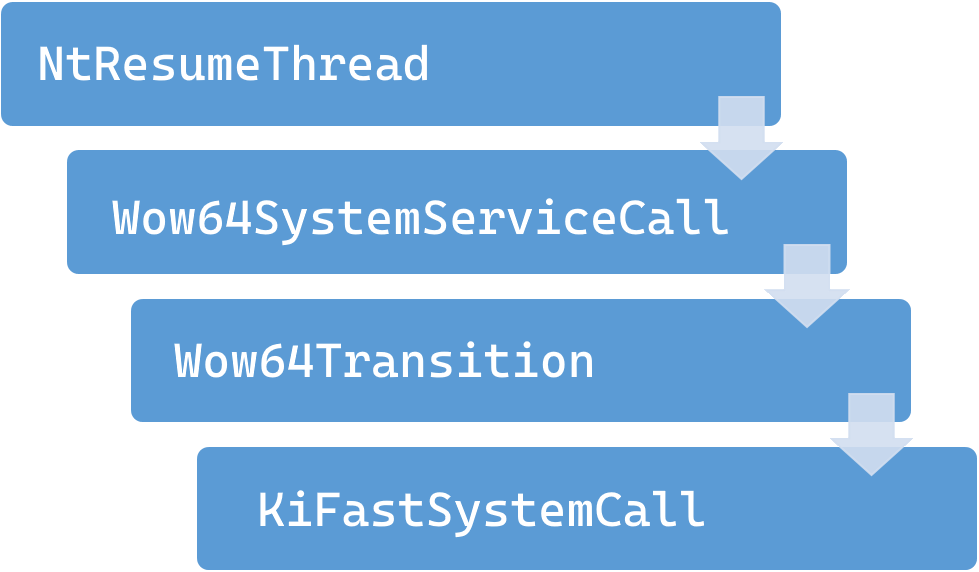

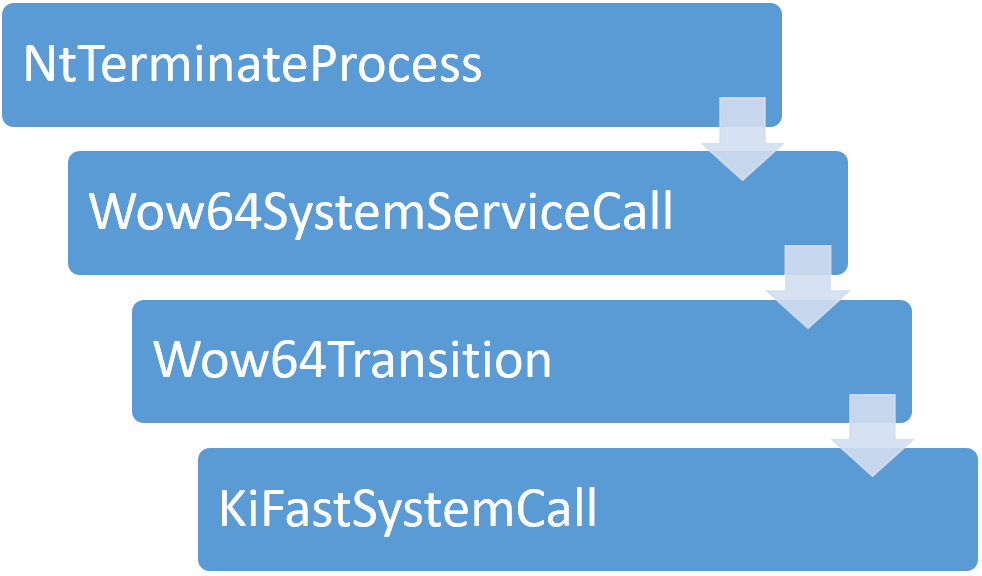

Let's recap the trace we've performed to this point. We started from a call in ntdll, NtResumeThread. This function calls the Wow64SystemServiceCall function which then executes the Wow64Transition. The KiFastSystemCall performs the transition from 32-bit to 64-bit execution. The flow is shown in Figure 5.
The destination of the CPU transition jump is the 64-bit code show in Figure 6.
Figure 6 shows the first 64-bit instruction we’ve seen executed in this call trace so far. In order to understand it, we need to look at how the WOW64 system initializes itself. For a detailed explanation of this refer to (wbenny). For now, we can look at the important parts in wow64cpu!RunSimulatedCode.

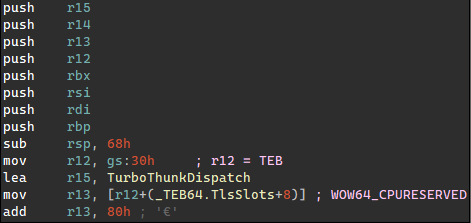

Figure 7 depicts the retrieval of the 64-bit TEB which is used to access Thread Local Storage at slot index 1. Then the moving of a function pointer table into register r15. The TLS data retrieved is an undocumented data structure WOW64_CPURESERVED that contains register data and CPU state information used by the WOW64 layer to set and restore registers across the 32-bit and 64-bit boundaries. Within this structure is the WOW64_CONTEXT structure, partially documented on the Microsoft website. I have listed both structures at the end of this post. We’ll look at how this context structure is used later, but for our understanding of the jmp earlier all we need to know is that r15 is a function pointer table.
It’s interesting to note at this point the architecture of the WOW64 layer. From the perspective of the 64-bit kernel the execution of 32-bit (Wow64) usermode applications is essentially a big while loop. The loop executes x86 instructions in the processor's 32-bit execution mode and occasionally exits the loop to service a system call. Because the kernel is 64-bit, the processor mode is temporarily switched to 64-bit, the system call serviced, then the mode switched back and the loop continued where it was paused. One could say the WOW64 layer acts like an emulator where the instructions are instead executed on the physical CPU.
Going back to the jmp instruction we saw in Figure 6, we now know what is occurring. The instruction jmp [r15 + 0xF8] is equivalent to the C code jmp TurboThunkDispatch[0xF8 / sizeof(uint64_t)]. Looking at the function pointer at this index we can see we’re at the function wow64cpu!CpupReturnFromSimulatedCode (Figure 8).

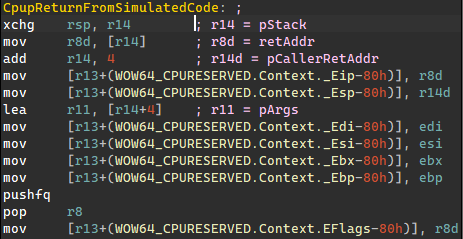

This routine is responsible for saving the state of the 32-bit registers into the WOW64_CONTEXT structure we mentioned before as well as retrieving the arguments for the syscall. There is some trickiness going on here, so let’s examine this in detail. First a pointer to the stack is moved into r14 via xchg, the value at this location will be the return address from the syscall stub where Wow64SystemServiceCall was called. The stack pointer r14 is then incremented by 4 to get a pointer to where the stack should be reset when it’s time to restore all these context values. These two values are then stored in the context’s EIP and ESP variables respectively. The r14 stack pointer is then incremented one more time to get the location where the __stdcall arguments are (remember stdcall passes all arguments on the stack). This argument array is important for later, remember it. The arguments pointer is moved into r11, so in C this means that r11 is equivalent to an array of stack slots where each slot is an argument uint32_t r11[argCount]. The rest of the registers and EFlags are then saved.
Once the 32-bit context is saved, the WOW64 layer then calculates the appropriate TurboThunk to invoke by grabbing the upper 16 bits of the syscall number and dispatches to that thunk. Note that at the beginning of this array is the function TurboDispatchJumpAddressEnd, shown in Figure 9, which is invoked for functions that do not support TurboThunks.
TurboThunks are described by (wbenny)—read his blog post at this point if you have not. To summarize the post, for functions that have simple arguments with widths <= sizeof(uint32_t) the WOW64 layer will directly widen these arguments to 64 bits via zero or sign-extension and then perform a direct syscall into the kernel. This all occurs within wow64cpu, rather than executing a more complex path detailed as follows. This acts as an optimization. For more complex functions that do not support TurboThunks the TurboDispatchJumpAddressEnd stub is used which dispatches to wow64!SystemServiceEx to perform the system call as shown in Figure 10.

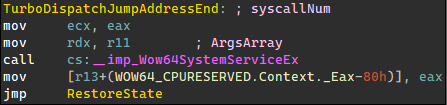

We’ll look at this routine in a moment as it’s the meat of this blog post, but for now let’s finish this call trace. Once Wow64SystemServiceEx returns from doing the system call the return value in eax is moved into the WOW64_CONTEXT structure and then the 32-bit register states are restored. There’s two paths for this, a common case and a case that appears to exist only to be used by NtContinue and other WOW64 internals. A flag at the start of the WOW64_CPURESERVED structure retrieved from the TLS slot is checked, and controls which restore path to follow as shown in Figure 11.

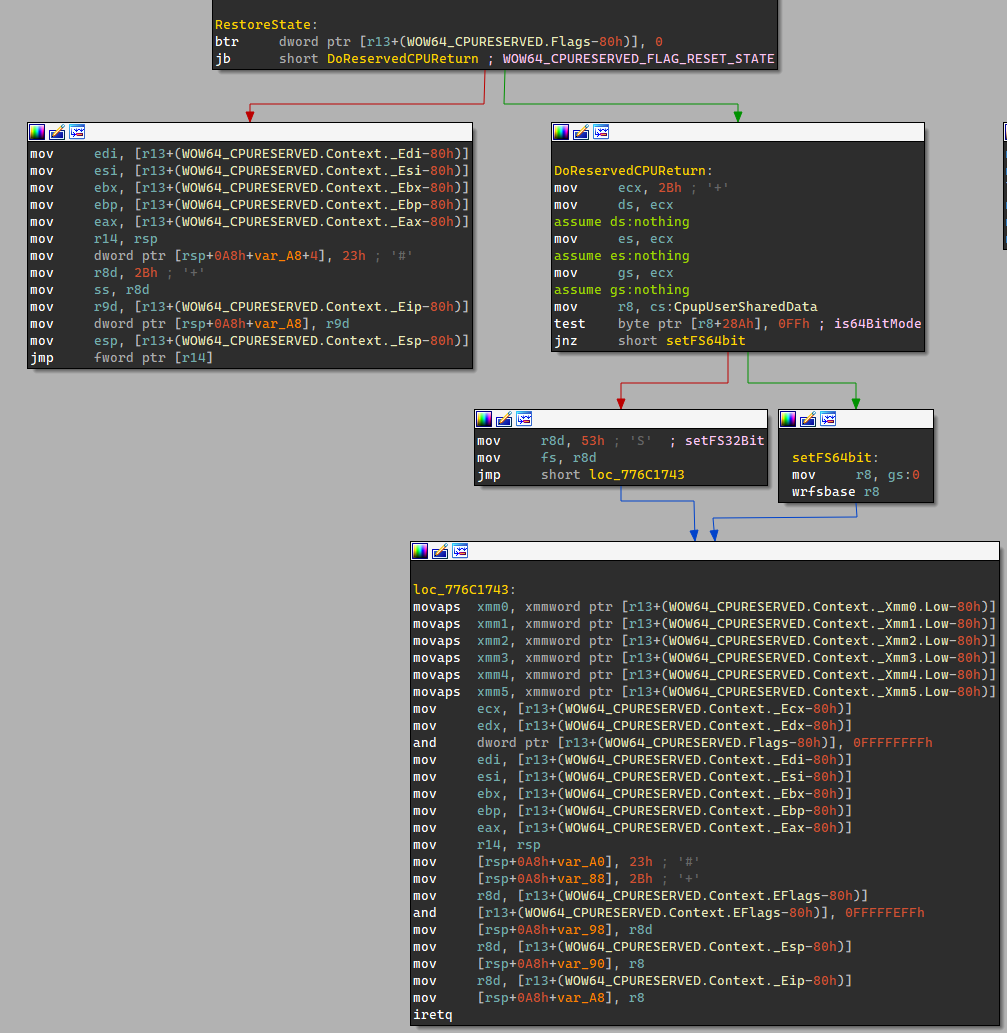

The simpler case will build a jmp that uses the segment selector 0x23 to transition back to 32-bit mode after restoring all the saved registers in the WOW64_CONTEXT. The more complex case will additionally restore some segments, xmm values, and the saved registers in the WOW64_CONTEXT structure and then will do an iret to transition back. The common case jmp once built is shown in Figure 12.
At this point our call trace is complete. The WOW64 layer has transitioned back to 32-bit mode and will continue execution at the ret after Wow64SystemServiceCall in the syscall stub we started with. Now that an understanding of the flow of the WOW64 layer itself is understood, let’s examine the Wow64SystemServiceEx call we glossed over before.

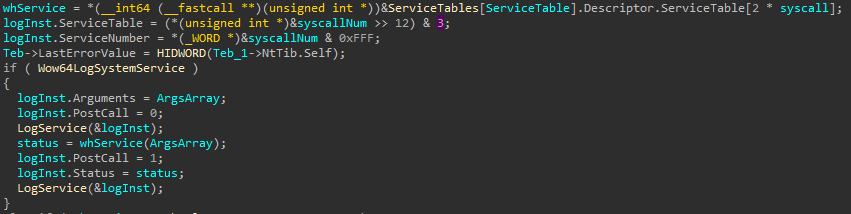

A little bit into the Wow64SystemServiceEx routine, Figure 13 shows some interesting logic that we will use later.
The routine starts by indexing into service tables which hold pointers to routines that convert the passed argument array into the wider 64-bit types expected by the regular 64-bit system modules. This argument array is exactly the stack slot that was stored earlier in r14.
Two calls to the LogService function exist, however these are only called if the DLL %WINDIR%\system32\wow64log.dll is loaded and has the exports Wow64LogInitialize, Wow64LogSystemService, Wow64LogMessageArgList, and Wow64LogTerminate. This DLL is not present on Windows by default, but it can be placed there with administrator privileges.
The next section will detail how this logging DLL can be used to hook syscalls that transition through this wow64layer. Because the logging routine LogService is invoked before and after the syscall is serviced we can achieve a standard looking inline hook style callback function capable of inspecting arguments and return values.
Bypassing Inline Hooks
As described in this blog post, Windows provides a way for 32-bit applications to execute 64-bit syscalls on a 64-bit system using the WOW64 layer. However, the segmentation switch we noted earlier can be manually performed, and 64-bit shellcode can be written to setup a syscall. This technique is popularly called “Heaven’s Gate”. JustasMasiulis’ work call_function64 can be used as a reference to see how this may be done in practice (JustasMasiulis). When system calls are performed this way the 32-bit syscall stub that the WOW64 layer uses is completely skipped in the execution chain. This is unfortunate for security products or tracing tools because any inline hooks in-place on these stubs are also bypassed. Malware authors know this and utilize “Heaven’s Gate” as a bypass technique in some cases. Figure 14 and Figure 15 shows the execution flow of a regular syscall stub through the WOW64 layer, and hooked syscall stub where malware utilizes “Heaven’s Gate”.

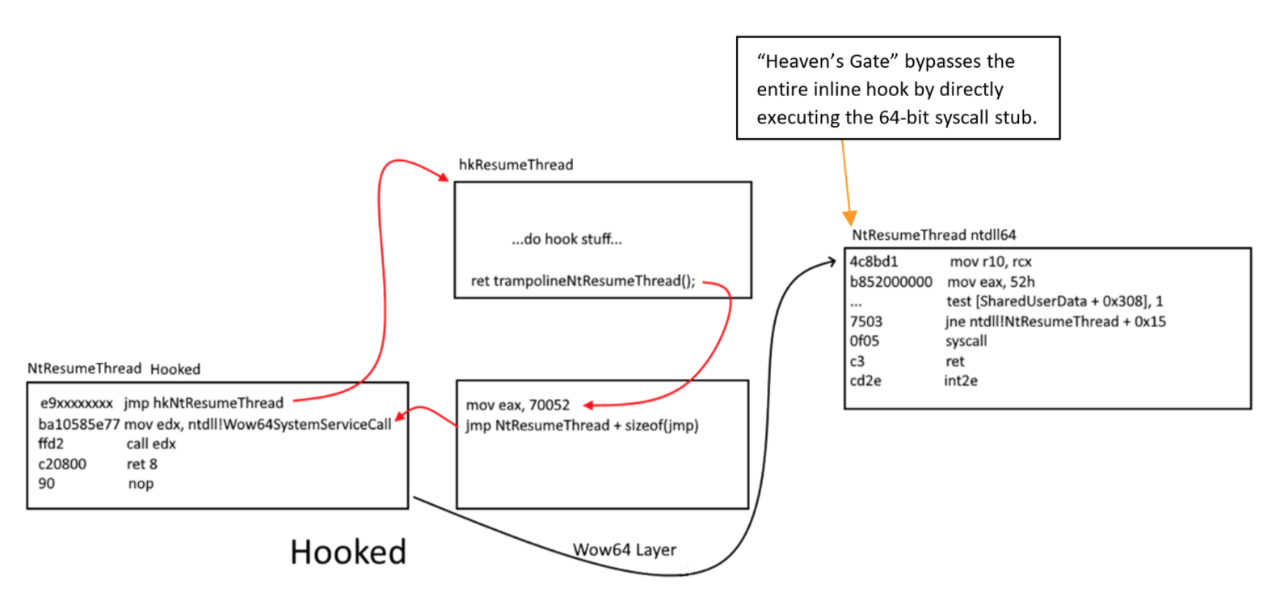

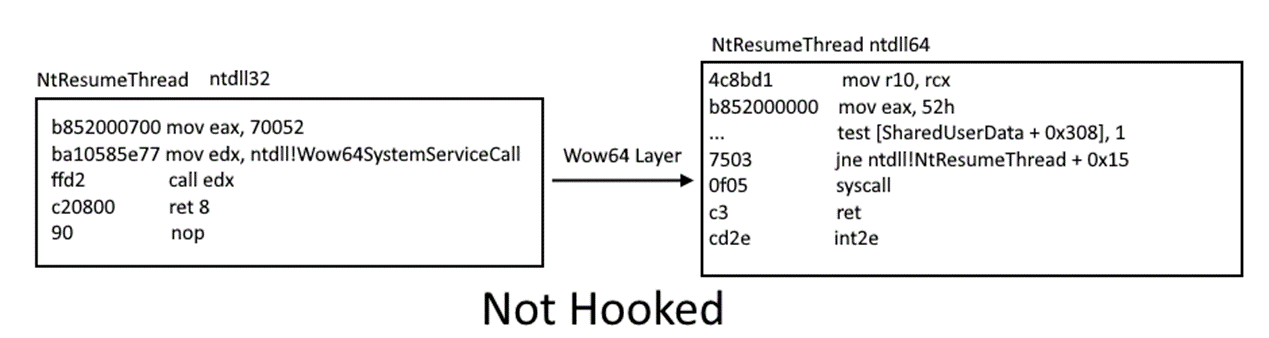

As seen in Figure 15, when using the Heaven’s Gate technique, execution begins after the inline hook and WOW64 layer is done. This is an effective bypass technique, but one that is easy to detect from a lower level such as a driver or hypervisor. The easiest bypass to inline hooks is simply to restore the original function bytes, usually from bytes on disk. Malware such as AgentTesla and Conti has been known to utilize this last evasion technique.
Hooking WOW64 via Inline Hooks
As a malware analyst being able to detect when samples attempt to bypass the WOW64 layer can be very useful. The obvious technique to detect this is to place inline hooks on the 64-bit syscall stubs as well as the 32-bit syscall stubs. If the 64-bit hook detects an invocation that didn’t also pass through the 32-bit hook, then it’s known that a sample is utilizing Heaven’s Gate. This technique can detect both evasion techniques previously detailed. However, in practice this is very difficult to implement. Looking at the requirements that must be satisfied to hook the 64-bit syscall stub we come up with this list:
- Install 64-bit hook from a 32-bit module
- How do you read/write 64-bit address space from a 32-bit module?
- Implement a 64-bit callback from a 32-bit module
- Typically, inline hooking uses C functions as callback stubs, but we’re compiling a 32-bit module so we’ll have a 32-bit callback instead of the required 64-bit one.
To solve the first challenge ntdll kindly provides the exports NtWow64ReadVirtualMemory64, NtWow64WriteVirtualMemory64, and NtWow64QueryInformationProcess64. Using these it is possible to read memory, write memory, and retrieve the PEB of a 64-bit module from a 32-bit process. However, the second challenge is much harder as either shellcode or a JIT will be required to craft a callback stub of the right bitness. In practice ASMJIT may be utilized for this. This is however a very tedious technique to trace a large number of APIs. There are other challenges to this technique as well. For example, in modern Windows 10 the base address of ntdll64 is set to a high 64-bit address rather than a lower 32-bit address as in Windows 7. Due to this, supporting returns from callbacks back up to the original hooked stub and allocating a trampoline within the required memory range is difficult since the standard ret instruction doesn’t have enough bits on the stack to represent the 64-bit return address.
As an aside, it should be noted that the WOW64 layer contains what is likely a bug when dealing with the NtWow64* functions. These APIs all take a HANDLE as first argument, which should be sign extended to 64-bits. However, this does not occur for these APIs, therefore when using the pseudo handle -1 the call fails with STATUS_INVALID_HANDLE. This bug was introduced in an unknown Windows 10 version. To successfully use these APIs OpenProcess must be used to retrieve a real, positive valued handle.

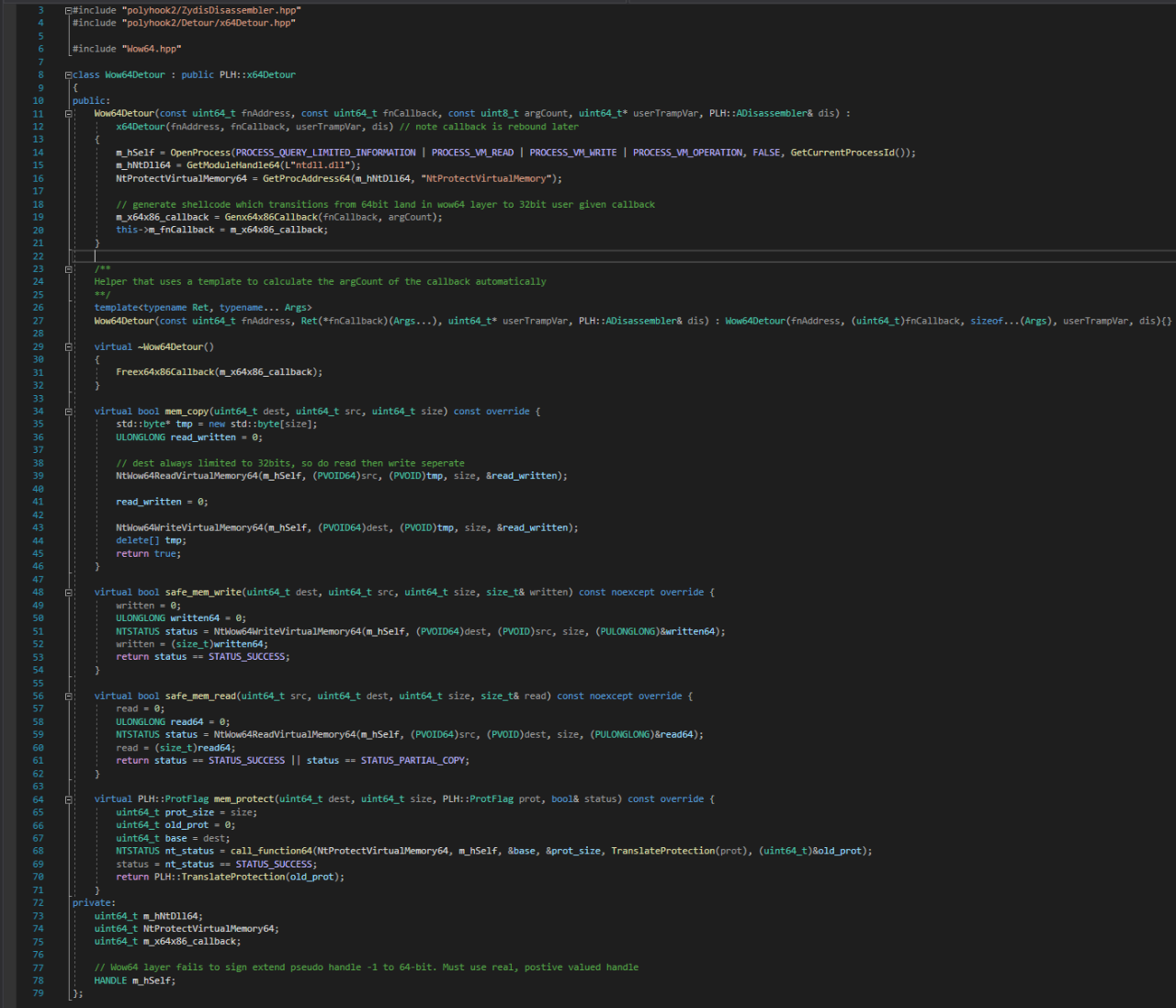

I will not be covering the internals of how to inline hook the 64-bit syscall stub since this post is already very long. Instead I will show how my hooking library PolyHook2 can be extended to support cross-architecture hooking using these Windows APIs, and leave the rest as an exercise to the reader. This works because PolyHook’s trampolines are not limited to +-2GB and do not spoil registers. The internals of how that is achieved is a topic for another post. Figure 16 depicts how to overload the C++ API of polyhook to read/write memory using the aforementioned WinAPIs.
Once these inline hooks are in-place on the 64-bit syscall stubs, any application utilizing Heaven’s Gate will be properly intercepted. This hooking technique is very invasive and complicated and can still be bypassed if a sample was to directly execute a syscall instruction rather than using the 64-bit module’s syscalls stub. Therefore, a driver or hypervisor is more suitable to detect this evasion technique. Instead we can focus on the more common byte restoration evasion techniques and look for a way to hook the WOW64 layer itself. This doesn’t involve assembly modifications at all.
Hooking WOW64 via LogService
Thinking back to the WOW64 layer’s execution flow we know that all calls which are sent through the Wow64SystemServiceEx routine may invoke the routine Wow64LogSystemService if the logging DLL is loaded. We can utilize this logging DLL and routine to implement hooks which can be written the exact same way as inline hooks, without modifying any assembly.

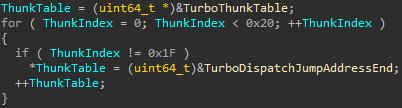

The first step to implementing this is to force all API call paths through the Wow64SystemServiceEx routine so that the log routine may be called. Remember earlier that those that support TurboThunks will not take this path. Lucky for us we know that any TurboThunk entry that points to TurboDispatchJumpAddressEnd will take this path. Therefore, by pointing every entry in the TurboThunk table to point at that address, the desired behavior is achieved. Windows kindly implements this patching via wow64cpu!BTCpuTurboThunkControl as shown in Figure 17.
Note that in previous Windows versions the module which exported this and how it did is different to Windows 10, version 2004. After invoking this patch routine all syscall paths through WOW64 go through Wow64SystemServiceEx and we can focus on crafting a logging DLL that man-in-the-middles (MITMs) all calls. There are a couple of challenges to be considered here:
- How do we determine which system call is currently occurring from the logging DLL?
- How are callbacks written? Wow64log is 64-bit DLL, we’d like a 32-bit callback.
- Is shellcode required, or can we make nice C style function callbacks?
- What APIs may we call? All that’s loaded is 64-bit ntdll.
The first concern is rather easy, from within the wow64log DLL we can read the syscall number from the syscall stubs to create a map of number to name. This is possible because syscall stubs always start with the same assembly and the syscall number is at a static offset of 0x4. Figure 18 shows how we can then compare the values in this map against the syscall number passed to Wow64LogSystemService’s parameter structure WOW64_LOG_SERVICE.
typedef uint32_t* WOW64_ARGUMENTS;
Figure 18: Minimal example of determining which syscall is occurring—in practice the service table must be checked too
Writing callbacks is a bit more challenging. The wow64log DLL is executing in 64-bit mode and we’d like to be able to write callbacks in 32-bit mode since it’s very easy to load additional 32-bit modules into a WOW64 process. The best way to handle this is to write shellcode which is capable of transitioning back to 32-bit mode, execute the callback, then go back to 64-bit mode to continue execution in the wow64log DLL. The segment transitions themselves are rather easy at this point, we know we just need to use 0x23 or 0x33 segment selectors when jumping. But we also need to deal with the calling convention differences between 64-bit and 32-bit. Our shellcode will therefore be responsible for moving 64-bit arguments’ register/stack slots to the 32-bit arguments register/stack slots. Enforcing that 32-bit callbacks may only be __cdecl makes this easier as all arguments are on the stack and the shellcode has full control of stack layout and cleanup. Figure 19 shows the locations of the arguments for each calling convention. Once the first 4 arguments are relocated all further arguments can be moved in a loop since it’s simply moving stack values into lower slots. This is relatively easy to implement using external masm files in MSVC. Raw bytes will need to be emitted at points rather than using the assembler due to the mix of architectures. Alternatively, GCC or Clang inline assembly could be used. ReWolf’s work achieves the opposite direction of 32-bit -> 64-bit and implements the shellcode via msvc inline asm. X64 MSVC doesn’t support this and there are complications with REX prefixes when using that method. It’s nicer to use external masm files and rely on the linker to implement this shellcode.
[ebp + 8]
[ebp + 12]
[ebp + 16]
[ebp + 20]
[ebp + 24]
[rbp + 32 + 8]
[ebp + 28]
[rbp + 32 + 16]
[ebp + 32]
[rbp + 32 + 24]
Figure 19: Cdecl vs Fastcall argument positions

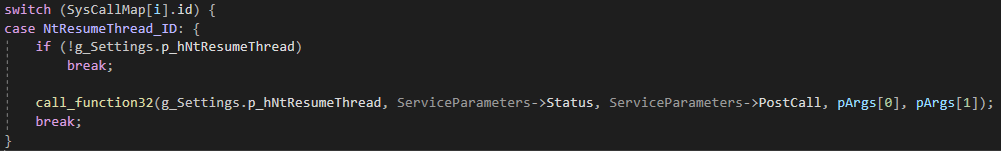

Once this shellcode is written and wrapped into a nice C++ function, it’s possible for the wow64log DLL to invoke the callback via a simple C style function pointer call shown in Figure 20.

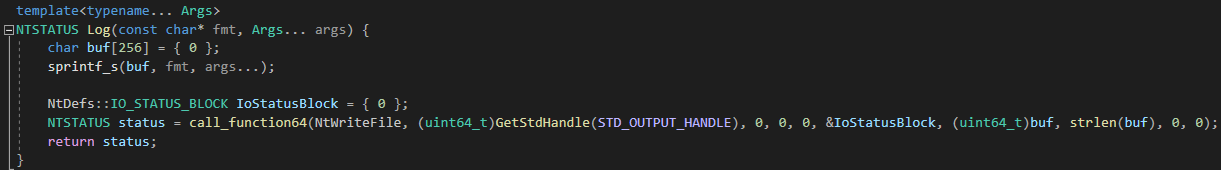

From within the 32-bit callback any desired MITM operations can be performed, but restrictions exist on which APIs are callable. Due to the context saving that the WOW64 layer performs, 32-bit APIs that would re-enter the WOW64 layer may not be called as the context values would be corrupted. We are therefore limited to only APIs that won’t re-enter WOW64, which are those that are exported from the 64-bit ntdll. The NtWriteFile export may be used to easily write to stdout or a file, but we must re-enter the 64-bit execution mode and do the inverse argument mapping as before. This logging routine can be called from within the 32-bit callbacks and is shown in Figure 21 and Figure 22.

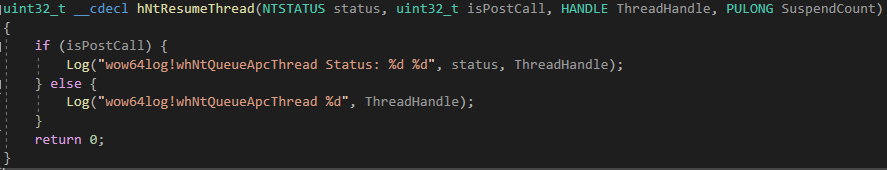

The result is clean looking callback stubs that function exactly how inline hooks might, but with zero assembly modifications required. Arguments can easily be manipulated as well, but the return status may not be modified unless a little stack walk hackery is implemented. The only other consideration is that the wow64log DLL itself needs to be carefully crafted to not build with any CRT mechanisms. The flags required are:
- Disable CRT with /NODEFAULT LIB (all C APIs now unavailable), set a new entry point name to not init CRT NtDllMain
- Disable all CRT security routines /GS-
- Disable C++ exceptions
- Remove default linker libraries, only link ntdll.lib
- Use extern “C” __declspec(dllimport) <typedef> to link against the correct NtApis

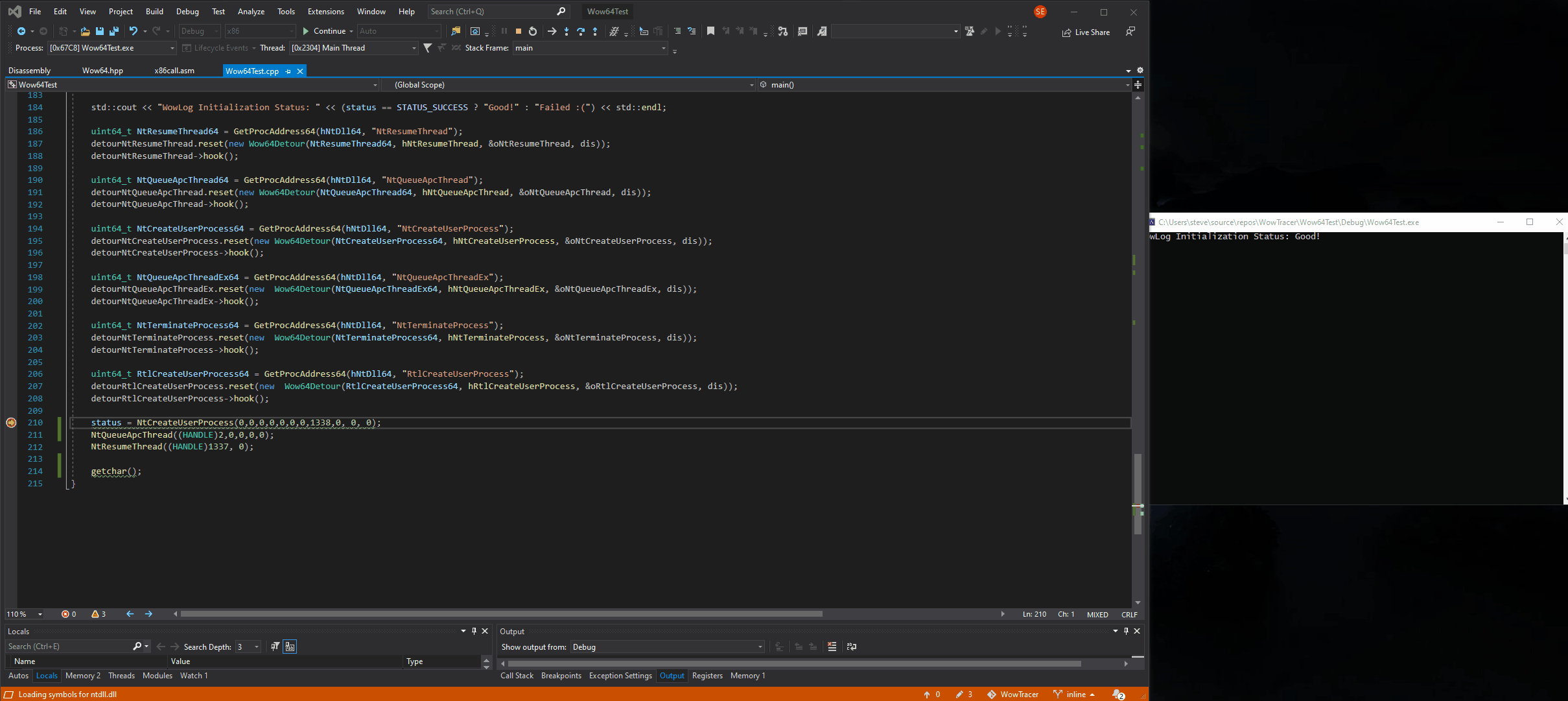

An example of a program hooking its own system calls via wow64log inline hooks is shown in Figure 23.
Using inline WOW64 hooks, wow64log hooks, and kernel/hypervisor hooks, all techniques of usermode hook evasion can be identified easily and automatically. Detecting which layers of hooks are skipped or bypassed will give insight into which evasion technique is employed. The identifying table is:
Heavens Gate sys-stub
Heavens Gate direct syscall
typedef ULONG *WOW64_LOG_ARGUMENTS;
unsigned __int32 SystemCallNumber : 12;
unsigned __int32 ServiceTableIndex : 4;
unsigned __int32 TurboThunkNumber : 5;
unsigned __int32 AlwaysZero : 11;
#pragma pack(push, 1)
#pragma pack(push, 1)
