The ransomware-as-a-service (RaaS) model is lowering the barrier of entry into the cybercrime world, causing the number of ransomware attacks we're seeing to spike higher than ever before.

In the last few years, ransomware has become one of the principal sources of income in the cybercrime ecosystem, with increased use of extortion by shaming victims, threatening to release exfiltrated data, and in some cases hitting them with distributed denial-of-service (DDoS) attacks.

This blog post explores activity, similarities and overlaps between multiple ransomware families related to AVADDON ransomware, serving as a case study to understand how ransomware operators think and continue to turn a profit in a constantly evolving cybercrime ecosystem.

Various RaaS services have prevailed in compromising critical targets, leading to major impacts on victim networks and to sizable ransom demands. AVADDON is one of these ransomware services.

The threat actor behind the AVADDON ransomware service started activity in June 2020 and continued operations until June 2021. The service was apparently shut down rapidly—and private encryption keys released—as governments prioritized the fight against ransomware operations with new legislation and increased law enforcement operations.

Mandiant has observed notable overlaps between AVADDON and other ransomware families, indicating the possibility of rebranding in order to reintroduce itself into the RaaS business. Based on the profitability of these operations, it is almost certain that numerous threat actors will continue to conduct ransomware operations.

Victimology

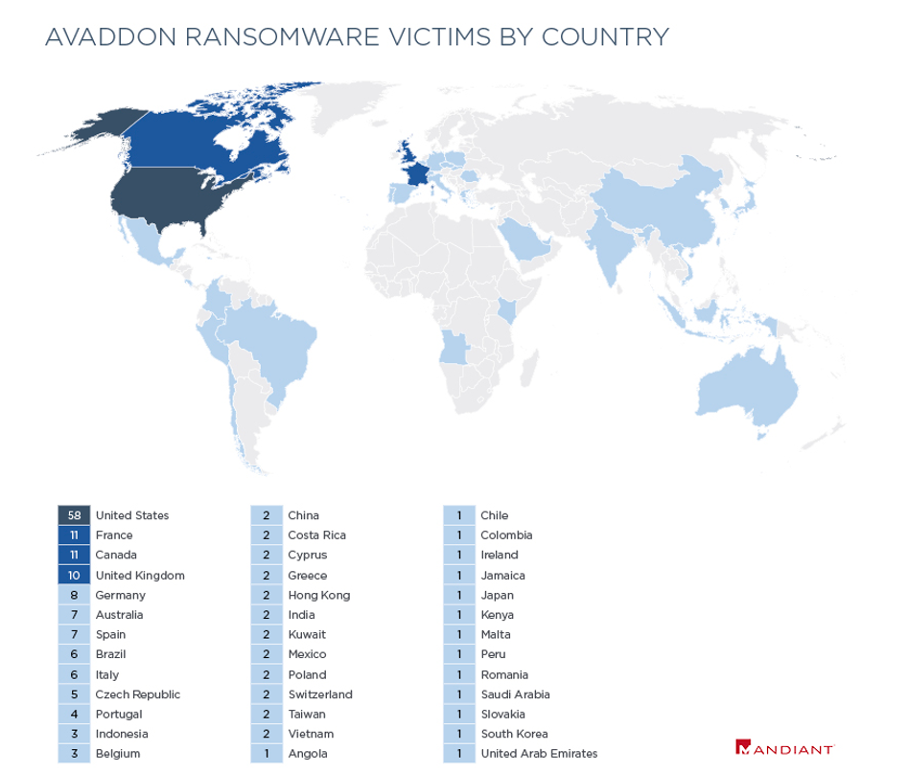

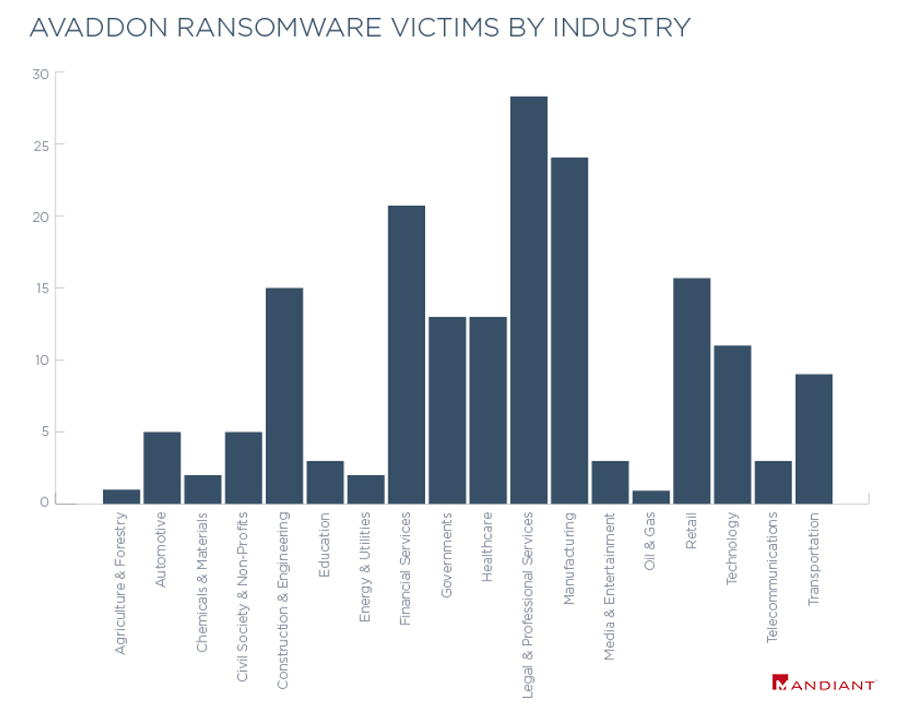

Destructive attacks leveraging AVADDON ransomware have affected a wide variety of industries. Based on publicly named victims on AVADDON’s own blog post and Mandiant’s incident response investigations, we have observed AVADDON impacting industry verticals primarily based in North America, including education, technology, healthcare, financial and government.

Based on open-source data, AVADDON released nearly 3,000 private encryption keys, indicating that targeting is almost certainly broader than directly observed.

AVADDON Ransomware Service

In June 2020, Mandiant reported the Russian-speaking threat actor “Avaddon” advertising the AVADDON ransomware affiliate program (RaaS) on the Russian-speaking forums exploit[.]in and xss[.]is. In March 2021, the threat actor Avaddon posted an update for the AVADDON RaaS to announce the development of AVADDON V2 and later that same year incorporated a DDoS feature designed to pressure victims into paying the ransom.

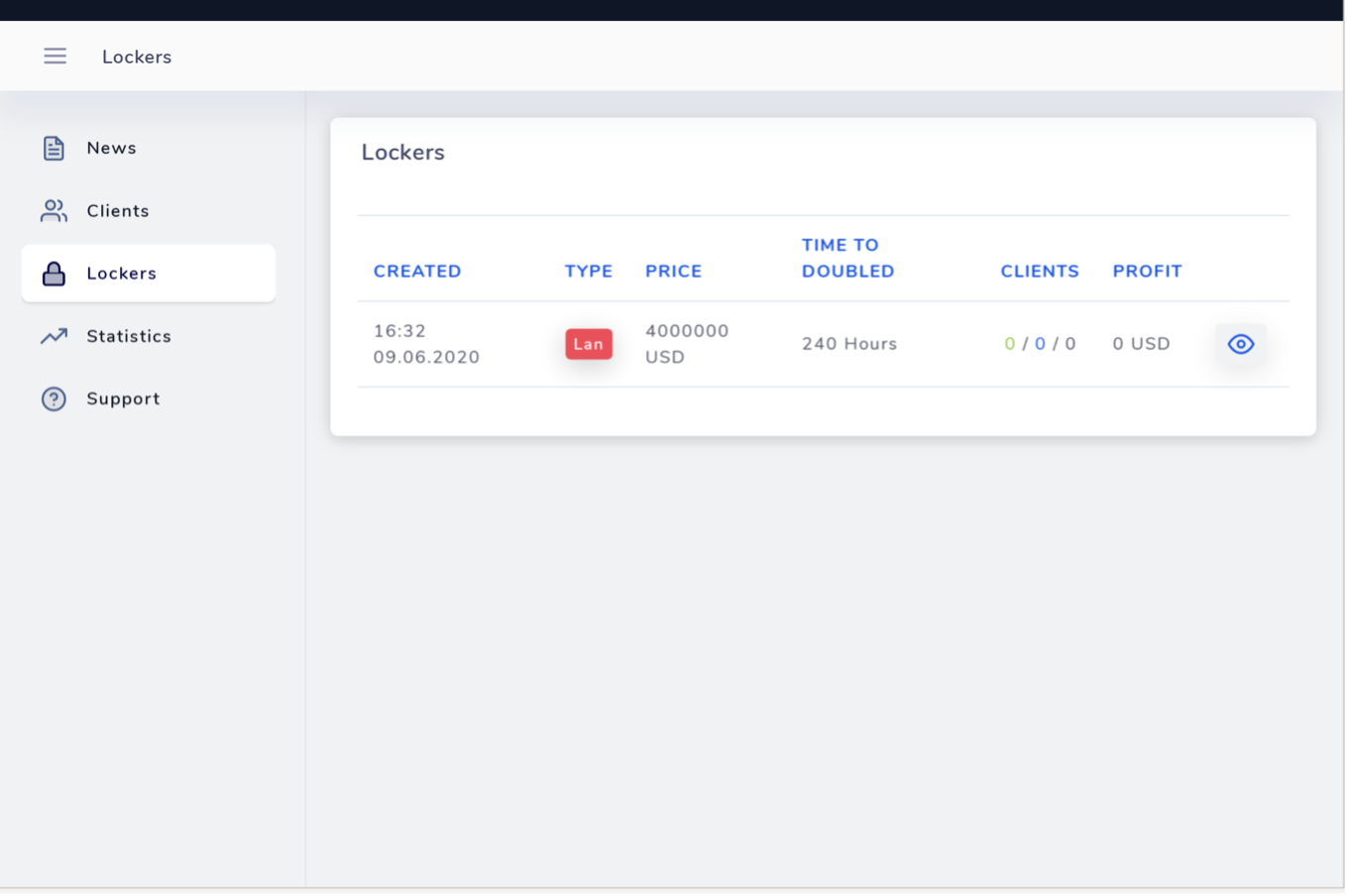

The AVADDON panel seen in Figure 3, was hosted on a TOR hidden service (.onion domain) and was provided to AVADDON affiliates in order to monitor victims and their payments, track builds, provide a support ticketing system, and view statistics and related news publications. As typical with RaaS operations, AVADDON profits are divided according to their Terms of Service specified by the AVADDON operators, initially structured with 65% profit earned for the affiliate and 35% for the operators of the ransomware service (this is subject of change by the RaaS service). However, this could vary depending on the number of victims per affiliate, meaning that the profit percentage for the affiliate could be higher if the number of intrusions increased considerably.

AVADDON Affiliates

Mandiant identified multiple AVADDON affiliates involved in targeted destructive attacks leveraging AVADDON ransomware.

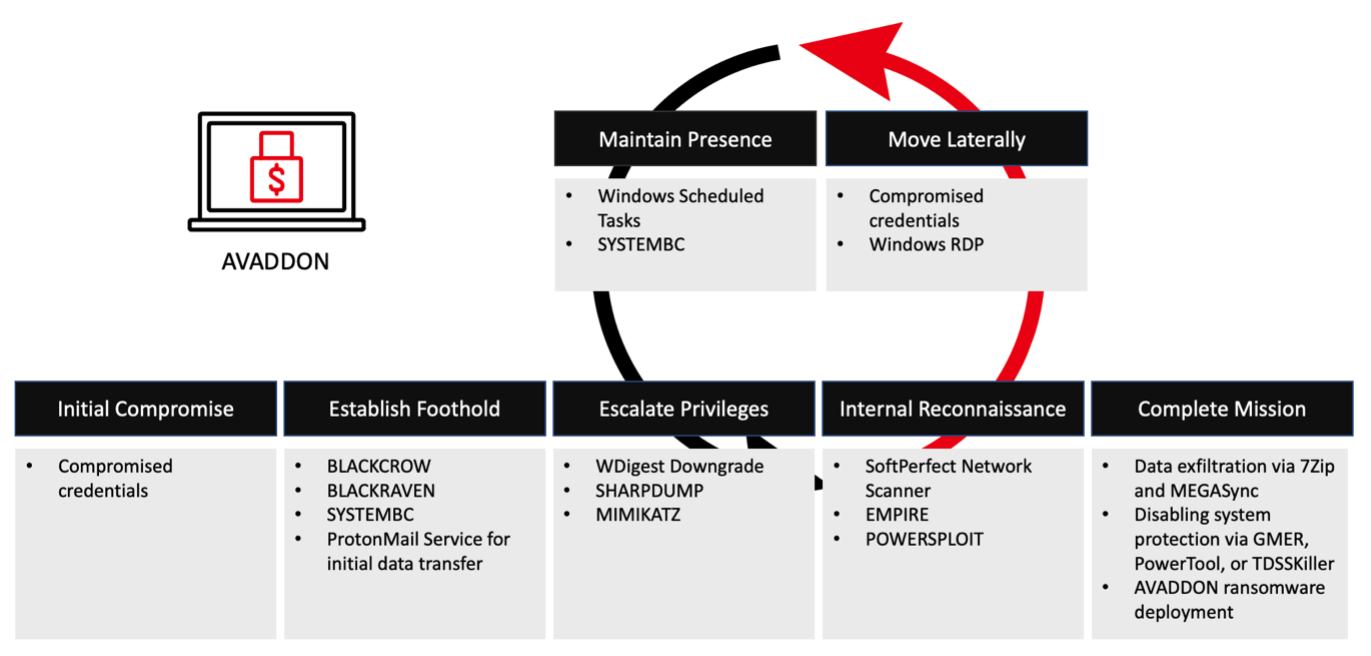

These attacks employed various tactics, techniques, and procedures (TTPs), including:

• Compromised credentials from prior intrusions. In one instance, Mandiant observed evidence of an AVADDON affiliate working with an initial access broker to gain initial foothold in a victim’s environment.
• Custom malware such as BLACKCROW and DARKRAVEN web shells to maintain access and interact with a compromised server.
• Publicly available remote administration tool SYSTEMBC for interacting with compromised hosts.
• Windows Remote Desktop Protocol (RDP) for lateral movement.
• WDigest downgrade attack in conjunction with SHARPDUMP or MIMIKATZ to dump clear-text credentials from memory.
• Open-source frameworks and scripts such as EMPIRE and POWERSPLOIT for post-exploitation activity.
• Windows Scheduled Task for persistence.
• Publicly available scanning tools such as SoftPerfect Network Scanner for internal reconnaissance.
• Publicly available rootkit removal tools such as GMER, PowerTool, and TDSSKiller to disable system protection software.
• ProtonMail service to send and receive data initially at the early stages of the intrusion.
• Publicly available archiving tool 7Zip and cloud storage synchronization tool MEGAsync for data staging and exfiltration.

From the TTPs, Mandiant has observed heavy reliance on open-source and publicly available tooling for different purposes across various stages of the intrusion.

Connecting the Dots

Mandiant continues to observe sophisticated TTPs and increased collaboration between different and specialized threat actors, each playing a particular role within the intrusion operation and has observed previous cases of rebranding where a new ransomware service aligns with another, suggesting collaboration between ransomware operators.

Mandiant has reported on multiple cases of potential rebranding and links between RaaS such as BLACKMATTER and SABBATH ransomware families and reported on the possibility of rebranding on AVADDON as the RaaS shut down.

Threat actors behind a RaaS may choose rebranding for a variety of reasons including fixing operational security flaws and the perception of reducing the risk of law enforcement disrupting their operations.

Mandiant has tracked AVADDON and analyzed its multiple versions along with potential ransomware families with which it shares similarities. In April 2021, Mandiant identified numerous ransomware services advertising in Russian-speaking underground forums, using assorted brands, yet having certain degrees of relations with AVADDON as far back as 2019, as seen in Figure 5.

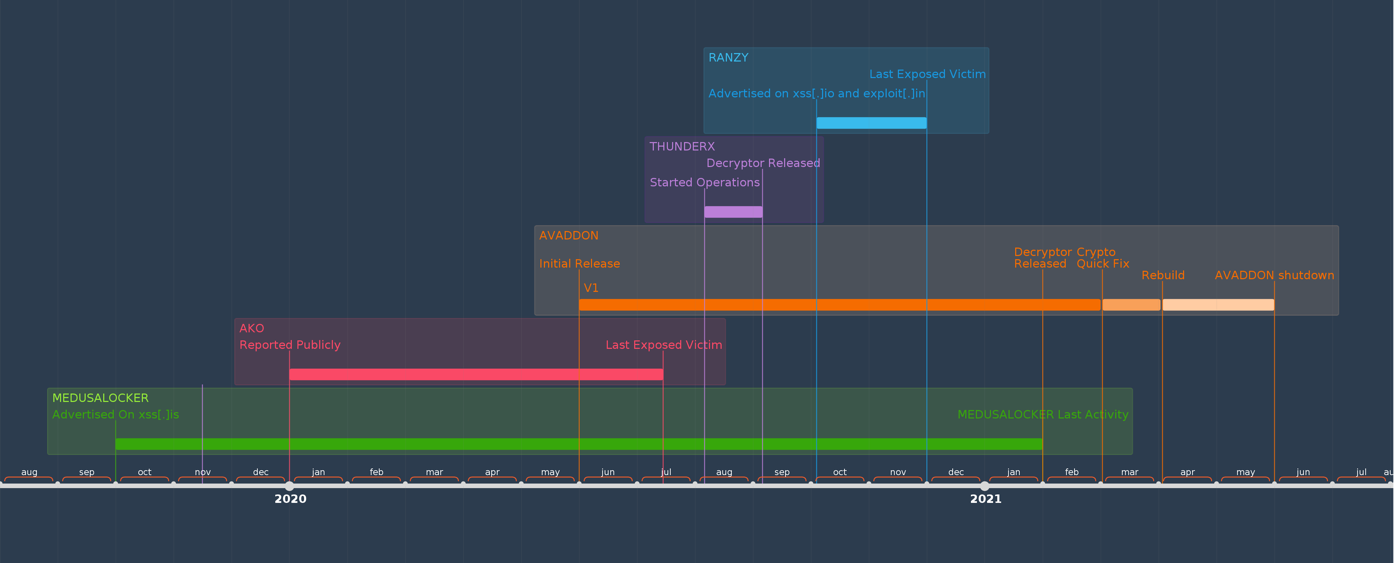

Mandiant has observed previous RaaS services operating since 2019 to 2021 connected to AVADDON source code. The variations among these ransomware families show an increase in maturity as the final product is improved in terms of performance and cryptographic functionality.

The timeline of these services and the similarities in the code may be part of the rebuilding process, suggesting collaboration between threat actors or access to a shared source code by multiple threat actors.

MEDUSALOCKER is ransomware that was advertised on the Russian-speaking forum xss[.]is by the threat actor ‘Scourge’ and reported by Mandiant in October 2019. During 2020, the service continued to be active and was updated with new versions of the ransomware. The last activity from the threat actor in the forum was in February 2021.

Ako, also known as MedusaReborn, is ransomware that was initially observed around January 2020. Ako operations continued to be active during 2020 and their last publicly exposed victim was added to their shaming blog in July 2020. Mandiant determined that Ako ransomware shares numerous similarities with MEDUSALOCKER and considers Ako to be a variant of MEDUSALOCKER.

ThunderX is a ransomware that started operating in August 2020 according to PE timestamps and public reports. However, in September 2020, Tesorion released a free decryptor that appears to have interrupted ThunderX operations. Mandiant determined ThunderX and RANZY to be a single malware family due to numerous similarities and code overlap.

RANZY, also known as “Ranzy Locker”, is a ransomware that was advertised on the Russian-speaking forums xss[.]is and exploit[.]in by the threat actor “Ranzycorp” in October 2020. RANZY has impacted multiple victims since late 2020, however, Mandiant did not observe publicly named victims on its shaming blog or activity in these forums in 2021.

AVADDON Ransomware Analysis

AVADDON encrypts files stored locally and on mapped network shares. It stops targeted processes and services prior to encrypting files. Mandiant has observed three major release versions that can be seen in Figure 5, for further detail on differences in encryption methodology, see the section AVADDON Encryption Evolution.

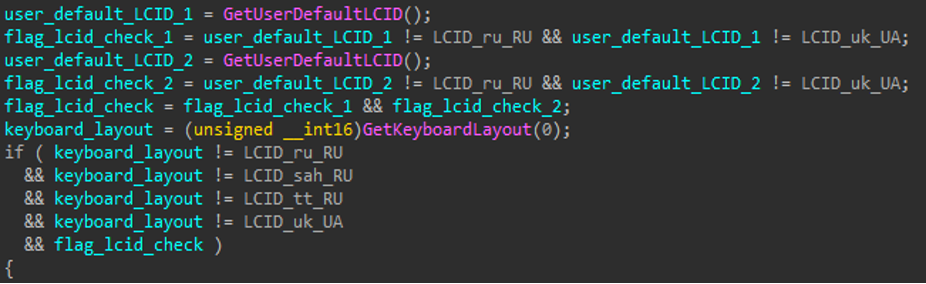

The ransomware contains host reconnaissance capabilities to retrieve the system’s Language Code Identifier (LCID) and keyboard layout (Figure 6) and exits if the following languages are found: Russian, Ukrainian, Tatar (Russian) or Sakha (Russian). This is consistent with one of the mandatory policies to which AVADDON affiliates must adhere: the total prohibition of ransomware operations within the Commonwealth of Independent States (CIS) territory.

AVADDON operates similarly to other ransomware samples and contains an embedded configuration. AVADDON’s configuration is stored in the form of global stdstring variables that are initialized prior to main as a C++ global initializer. The strings are decoded as they are needed during execution. All configuration encoding is performed using Base64 and multiple iterations of arithmetic operations utilizing a hardcoded single-byte key that varies per binary. Figure 7 is an example python script used for decoding configuration data found in sample hash (MD5:ae663fa3b803d8c23e98373fa3f66d21).

AVADDON’s execution flow begins by stopping and deleting services and processes that might interrupt its operation (Figure 8). Next, the configuration runs multiple commands that prevent a user from restoring from backup (Table 1). Finally, the ransomware begins its encryption operation by recursively iterating local drives and network shares while avoiding directories (Figure 9) and files with specific extensions (Figure 10).

AVADDON searches the following strings related to virtual machines, backups and antivirus services to stop and delete them:

The following processes are stopped. The ransomware stores a short-hand form of the full process name, but it does not appear to be used during process identification or termination.

AVADDON deletes the Windows shadow volumes and empties the recycle bin to avoid file recovery. Next, it executes the anti-recovery commands in Figure 9. Finally, to prevent the system from restarting, AVADDON leverages the Windows Restart Manager by adding files actively being encrypted to the Restart Manager registry.

The following directories are excluded from the encryption process and are consistent across different versions of AVADDON.

Additionally, directories containing the following keywords are excluded.

When encrypting the filesystem, the following extensions are excluded to ensure the system can be recovered after paying the ransom with the provided decryptor.

Host Survey

The ransomware includes a host survey as part of the ransom note. The host survey is comprised of two parts that are separated by a hyphen character and then Base64 encoded. The first part is a plaintext victim id, the second part is an RSA encrypted JSON structure of data containing the fields in Figure 13.

The following is an example JSON string containing the information gathered from the compromised system. This JSON string is not written to disk and is only stored in memory.

Earlier builds of AVADDON ransomware had a User Access Control (UAC) bypass module to abuse CMSTPLUA COM interface. This UAC bypass is common and has been used by multiple ransomwares such as DARKSIDE due to its easy implementation and the availability of public Proof of Concept (PoC) code. AVADDON added modifications over time and removed the UAC bypass.

AVADDON Encryption Evolution

Initially, AVADDON generated a single AES-256 key residing in memory during the encryption process, this key would stay resident until the process exited and was used to encrypt every file. This allowed researchers to develop a decryptor tool released in February 2021 on GitHub, abusing this flaw and dumping the cryptographic materials from the suspended process. Developers of the ransomware fixed this issue by generating a single AES key per file being encrypted.

AVADDON, when initially released, used a single AES key for encrypting all files. There are three ways to recover a file’s AES session key:

• The ransom note, as part of the victim ID, requires attackers’ private RSA key.
• Each file has a footer appended that contains the session key used to encrypt the file. The key can be extracted with the private RSA key.
• Find the session key resident in memory.

AVADDON later moved to using a “one key per file” method which resolved the third item of finding a key resident in memory. The other two methods require a private key and are therefore protected. One interesting note: the AES key generated and stored in the ransom note for later versions is never used, only the session keys stored in the file are correct, this is remnant of moving to a “one key per file” methodology vs a single key that could be stored once.

Analysis across AVADDON samples containing the file encryption fix showed the replacement of the used C++ structures for global variables indicating a quick fix was made by the threat actors developing AVADDON.

Samples observed later in 2021 with PE timestamps of April 2021 include improvements such as the addition of IOCompletionPort multithreading and the replacement of these global variables again for structures just like the original release.

This indicates that the threat actor implemented a quick fix after the release of the PoC decryptor to continue with the operations while improved and more consistent versions of the software were under development.

Additionally, latest versions of AVADDON had a function to force the restart of the victim host in safemode prior to encrypting the filesystem by providing the command line parameter “-safe” to the encryptor executable; mimicking other RaaS services that implemented similar features in attempt to bypass Antivirus and EDR software.

Ransomware Similarities and Technical Comparison

Mandiant analyzed multiple samples of MEDUSALOCKER, Ako, ThunderX, AVADDON and RANZY, finding multiple similarities between these ransomwares including the programming language, code similarities and functionalities, many of these can be observed in Figure 15.

Additionally, there’s a significant overlap in their infrastructure as Ako and RANZY used the same Tor onion address 7rckgo66iydpvgpwve7b2el5q2zhjw4tv4lmyewufnpx4lhkekxkoqd[.]onion.

This Tor site was used for the purposes of shaming victims and coercing them to pay ransom demands, showing another degree of relationship between them.

Similar PDB strings have been seen across multiple samples of MEDUSALOCKER, ThunderX (MD5: fedadfa6ce199900ca0a6a1f588f8beb), RANZY (MD5: d3774470f4a1b2451fb314d6c37a7763) and in a sample of AVADDON decryptor (MD5: 01422fd3eec0d1a0ce238df01edf8a50) contributing to show potential links between them.

Note that both ThunderX and RANZY share the same PDB string.

Example PDB paths:

• C:\Users\Gh0St\Desktop\MedusaLockerInfo\MedusaLockerProject\MedusaLocker\Release\MedusaLocker.pdb
• C:\Users\Gh0St\Desktop\MedusaLockerInfo\MedusaLockerProject\MedusaLocker\Debug\MedusaLockerXP.pdb
• C:\Users\Gh0St\Desktop\MedusaLockerInfo\MedusaLockerProject\MedusaLocker\Release\MedusaLockerXP.pdb
• C:\Users\Gh0St\Desktop\MedusaLockerInfo\MedusaLockerProject\MedusaLocker\Debug\MedusaLocker.pdb
• C:\Users\Gh0St\Desktop\MedusaLockerInfo\MedusaLockerProject_v2\MedusaLocker\Debug\MedusaLocker.pdb
• C:\Users\Gh0St\Desktop\AvaddonProjectInfo\AvaddonProject\AvaddonLockerLite\Release\AvaddonUnlockerGlobalLiteXPStub.pdb
• C:\Users\Gh0St\Desktop\ThunderX\Release\LockerStub.pdb

Figure 15: Table showing similarities between ransomware

*Ako (MEDUSALOCKER variant)

*ThunderX (RANZY variant)

Encryption Operations

Code reuse appeared very similar throughout initializing a cryptographic context for all of them. After analyzing each ransomware extensively, many functions had the same architecture and similar structure for storage and were found to always be evident and easy to pick out once reversing a sample.

Between the five ransomware, there are four modes of file encryption supported describing how much of the file to encrypt and in one case wiping the contents of the file instead of encrypting. These modes are the same across each ransomware.

File Signature

MEDUSALOCKER initially did not use file signature to append to the encrypted files, however Ako appends the hex value 0xBEEFCACE.

AVADDON appends the hex value 0x1030307 to the end of the file within a 24-byte structure.

RANZY and ThunderX use the signature hex value 0xB0E0E0F0.

These signatures are part of a 24-byte structure that is very similar across all of them, prior to this footer is the file’s session key encrypted with the attacker’s public key.

Identifier Format

Ako, ThunderX and RANZY construct highly similar JSON blobs that are encoded and written to the ransom notes. These contain multiple keywords that overlap between them.

Ako and AVADDON written identifiers contain similarities and overlap some keywords, however, AVADDON constructs a larger JSON (seen in Figure 14) and uses additional keywords not present in Ako.

Obfuscation

MEDUSALOCKER and Ako contain plain text strings and only the RSA key blob is base64 encoded. AVADDON, ThunderX and RANZY have different implementations to obfuscate both the RSA key and the strings.

UAC Bypass

MEDUSALOCKER and AVADDON use a similar UAC bypass functionality abusing the CMSTPLUA COM interface while ThunderX and RANZY don’t include a bypass.

Backup Deletion

The ransomware families delete backups by executing very similar command arguments to delete the Windows Shadow Copies invoking wbadmin, bcedit.exe and vssadmin.exe and to empty the recycle bin.

Service and Process Enumeration

These pieces of ransomware use a remarkably similar list of process and services to scan and stop if found and following a similar order. However, AVADDON contains more processes and services related to VMWare, Antivirus, SQLServer and Tomcat services and processes.

ThunderX and RANZY have different process and services lists and only some overlap. Additionally, the list of services to stop is considerably shorter than the rest of the ransomware, while the list of processes is larger.

File and Directory Exclusions

MEDUSALOCKER and AVADDON contain nearly identical file and directory exclusions, however, AVADDON contains additional directories that are skipped including TOR browser directories and a shorter list of file extensions skipped from the encryption process.

Network Scanning

MEDUSALOCKER, Ako, ThunderX and RANZY contain similar code to scan the victim’s network by using IcmpSendEcho function.

First builds identified for AVADDON rely on SendARP function, however, some of the AVADDON samples with PE timestamps from February 2021 show a replacement in the network reconnaissance module to use the IcmpCreateFile and IcmpSendEcho functions.

Other Differences

• Different versions of AVADDON have added exclusion folders and it can receive a CLI argument.
• ThunderX and RANZY can receive the CLI argument –nolan.

Conclusion

The similarities between these ransomware families and the timespan of activity suggest that the MEDUSALOCKER code base was likely reused by different threat actors that started operating RaaS in 2020. The binary similarities and techniques used show a certain degree of relationship between them. However, the technical skills of each threat actor involved in the development of these RaaS and the implementations vary per ransomware.

AVADDON constitutes a considerable evolution compared to MEDUSALOCKER, however, it is unclear whether AVADDON was the successor of MEDUSALOCKER due to technical differences and overlap in their activity. The AVADDON service was operational for about a year and gained considerable popularity among threat actors to extort victims across multiple regions and industries until events forced a fast exit followed by the shutdown of its operations and the release of the victim's private keys.

Given the similarities suggesting code overlap between these ransomware families, the different skillsets of the involved operators and the overlap in time, it is unclear whether the Law Enforcement disruption of ransomware operations at this time will be definitive for the threat actors responsible for AVADDON.

Rebranding, code sharing, or the purchase of source code by different threat actors are practical possibilities to get back into extortion operations as seen in previous cases such as SODINOKIBI’s connections with GANDCRAB ransomware, or the rebuild and rebrand of a new ransomware using another’s code base such as BLACKMATTER.

Appendix: ATT&CK Mapping

Mandiant Security Validation Action

Organizations can validate their security controls using the following actions with Mandiant Security Validation.

Appendix: Malware definitions

AVADDON

AVADDON is ransomware written in C++ that encrypts files stored locally and on mapped network shares. AVADDON terminates targeted processes and services prior to encrypting files. AVADDON uses the AES-256 encryption algorithm to encrypt files. AVADDON is a Windows ransomware written in C++. It is run as an affiliate program, RaaS. System files are encrypted using a single AES-256 key. The AES-256 key is generated at run-time and encrypted using an embedded RSA public key. The malware also has anti-analysis techniques and check that it is not running in a system with Russian language.

MEDUSALOCKER

MEDUSALOCKER is ransomware written in C++ that encrypts files stored locally and on network shares with a randomly generated AES-256 key. MEDUSALOCKER can bypass User Account Control (UAC) and terminates targeted processes and services prior to encrypting files. Persistence is established using a scheduled task. MEDUSALOCKER empties the Recycle Bin and delete volume shadow copies.

RANZY

RANZY is a ransomware written in C++ that encrypts files stored locally and on mapped network shares appending the extension "[.]ranzy" to them. RANZY uses Salsa20 stream cipher to encrypt files.

DARKRAVEN

DARKRAVEN is an ASPX webshell written in C# that functions as a backdoor. The backdoor supports shell command execution and file transfer. Supplied data is decrypted and decoded using 3DES and a custom Base64 decoding routine.

BLACKCROW

BLACKCROW is an ASPX webshell written in VB[.]NET that functions as backdoor. BLACKCROW expects an attacker to upload a [.]NET DLL payload alongside additional arguments. These arguments are used to invoke a series of methods within the DLL. The results of the final invocation are displayed to the attacker.

SYSTEMBC

SYSTEMBC is a tunneler written in C that retrieves proxy-related commands from a C2 server using a custom binary protocol over TCP. A C2 server directs SYSTEMBC to act as a proxy between the C2 server and a remote system. SYSTEMBC is also capable of retrieving additional payloads via HTTP. Some variants may utilize the Tor network for this purpose. Downloaded payloads may be written to disk or mapped directly into memory prior to execution. SYSTEMBC is often utilized to hide network traffic associated with other malware families. Observed families include DANABOT, SMOKELOADER, and URSNIF.

Acknowledgements

Advanced Practices team, FLARE team, Threat Pursuit team and Yash Gupta
